KG05E - CIT Relay & Switch

KG05E Details

• Manufacturer Part Number:

  KG05E

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  CIT Relay & Switch

• Actuator Color:

  WHITE

• Actuator Length:

  0.04 inch

• Actuator Material:

  POLYBUTYLENE TEREPHTHALATE

• Actuator Type:

  SLIDE TYPE

• Body Breadth:

  9.6 mm

• Body Color:

  RED

• Body Height:

  5.5 mm

• Body Length or Diameter:

  14.3 mm

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  GOLD

• Contact Current(DC)-Max:

  0.025 A

• Contact (DC) Max Rating R Load:

  0.025A@24VDC

• Contact Resistance:

  0.025 mΩ

• Contact Voltage(DC)-Max:

  24 V

• Dielectric Withstand Volts:

  500VRMS V

• Electrical Life:

  2000 Cycle(s)

• End Contact Material:

  PHOSPHOR BRONZE

• End Contact Plating:

  TIN

• Housing Material:

  POLYBUTYLENE TEREPHTHALATE

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Switch Sections:

  5

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

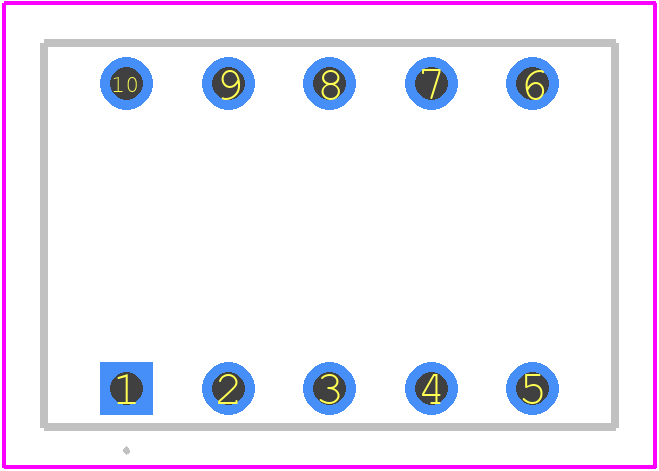

• PCB Hole Count:

  10

• Packing Method:

  TUBE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Length:

  0.15 inch

• Terminal Material:

  PHOSPHOR BRONZE

• Termination Type:

  SOLDER
