- Part Number KIA78R05API
- Manufacturer KEC
- Pin Count 4
- Part Category Transistor BJT PNP
- Package Category Transistor Outline, Vertical
- Footprint Name Transistor Outline, Vertical - TO-220IS-4
- Released Date Oct 27, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
KIA78R05API Details
-
Manufacturer Part Number:
KIA78R05API
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
KEC
-
YTEOL:
0
-
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
KIA78R05API Frequently Asked Questions (FAQs)
-
The maximum input voltage is 35V, but it's recommended to keep it below 30V for reliable operation.
-
Use a minimum of 10uF capacitor at the input and output pins, and ensure the PCB layout is designed to minimize noise and electromagnetic interference.
-
The maximum output current is 1A, but it's recommended to keep it below 0.8A for reliable operation and to prevent overheating.
-
Ensure good airflow around the device, use a heat sink if necessary, and keep the ambient temperature below 70°C.
-
Yes, the KIA78R05API is suitable for high-reliability applications, but ensure you follow the recommended operating conditions and PCB design guidelines.
Trust Checks
Community Provided
System Verified
Community Approved
KIA78R05API Overview

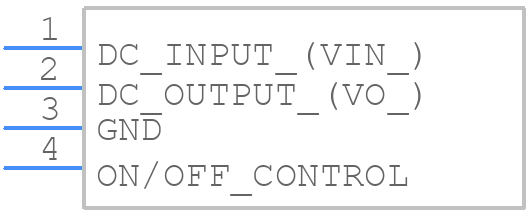

Use the download button to access the KIA78R05API schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KIA78,
or try a keyword search, such as Linear Regulator ICs
