Technical Content
Part Image

KIA78R09PI - KEC

Description: BIPOLAR LINEAR INTEGRATED CIRCUIT

Download KIA78R09PI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

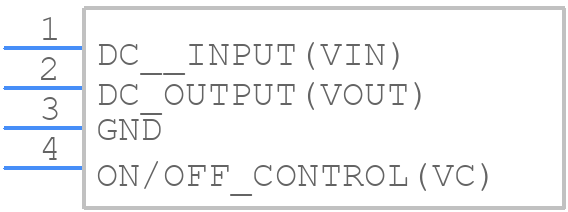

Symbol
KIA78R09PI - KEC - PCB symbol
click to zoom
PCB Footprints
KIA78R09PI - KEC PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220IS-4_22
click to zoom
3D Models
KIA78R09PI - KEC - 3D model - Transistor Outline, Vertical - TO-220IS-4_22
click to zoom

KIA78R09PI Details

  • Manufacturer Part Number:

    KIA78R09PI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-220IS

  • Package Description:

    TO-220IS, 4 PIN

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    KEC

  • YTEOL:

    6.3

  • Dropout Voltage1-Max:

    0.5 V

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    10 V

  • JESD-30 Code:

    R-XSFM-T4

  • Load Regulation-Max:

    0.18%

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    9.22 V

  • Output Voltage1-Min:

    8.78 V

  • Output Voltage1-Nom:

    9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Voltage Tolerance-Max:

    2.4%

KIA78R09PI Frequently Asked Questions (FAQs)

  • The maximum input voltage is 35V, but it's recommended to keep it below 30V for reliable operation.
  • To ensure stability, use a minimum output capacitance of 10uF, and keep the distance between the input and output capacitors as short as possible.
  • The minimum input voltage required for proper regulation is 7.5V, but it's recommended to keep it above 8V for optimal performance.
  • The KIA78R09PI is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability.
  • Use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit to protect the input from surges or spikes, and consider adding a fuse or PTC (Positive Temperature Coefficient) thermistor for overcurrent protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KIA78R09PI Overview

Use the download button to access the KIA78R09PI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KIA78, or try a keyword search, such as Linear Regulator ICs
