The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 in-lbs to 1.06 in-lbs).
Yes, the KLDHCX-0202-AC-1 is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, transportation, and aerospace.
Yes, the KLDHCX-0202-AC-1 is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C (-40°F to 257°F), and is resistant to moisture, dust, and corrosion.
The KLDHCX-0202-AC-1 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent connections and disconnections are required.
Yes, the KLDHCX-0202-AC-1 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KLDHCX-0202-AC-1 Overview

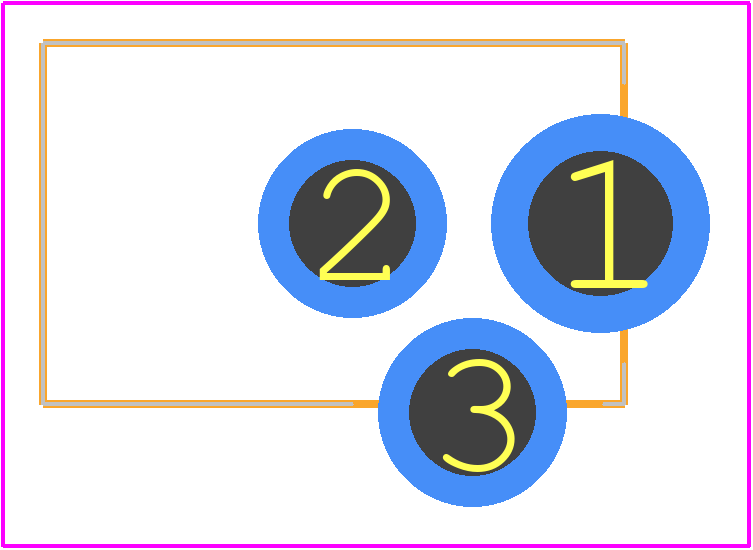

Use the download button to access the KLDHCX-0202-AC-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KLDHC,
or try a keyword search, such as DC Power Plugs or Jacks
