KLDHCX-0202-BC-1 - Kycon

Description: DC Power Connectors POWER JACK 2.5MM DIA CRIMP LEAD HIGH-CURR

Download KLDHCX-0202-BC-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KLDHCX-0202-BC-1 - Kycon - PCB symbol
click to zoom
PCB Footprints

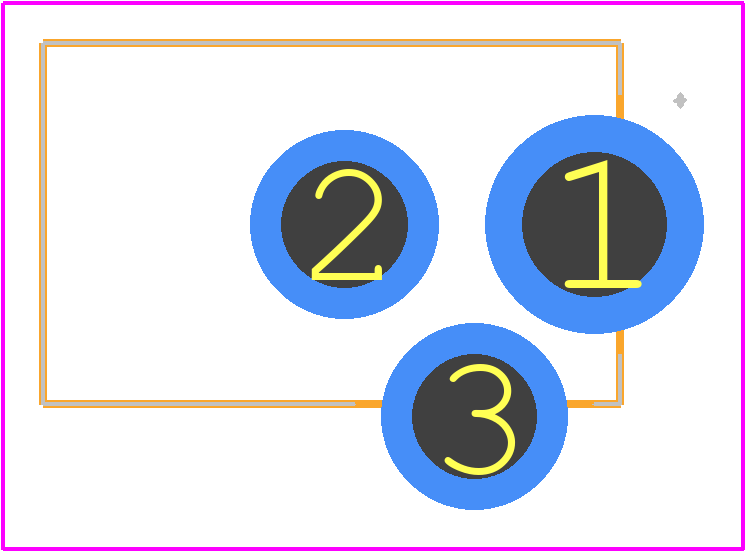

KLDHCX-0202-BC-1 - Kycon PCB footprint - Other - Other - KLDHCX-0202-BC-1-1
click to zoom
3D Models
KLDHCX-0202-BC-1 - Kycon - 3D model - Other - KLDHCX-0202-BC-1-1
click to zoom

KLDHCX-0202-BC-1 Details

  • Manufacturer Part Number:

    KLDHCX-0202-BC-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Kycon Inc

  • YTEOL:

    6.25

  • Body Breadth:

    0.433 inch

  • Body Depth:

    0.567 inch

  • Body Length:

    0.354 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE / POLYETHYLENE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    CSA,CUL,UL

  • Termination Type:

    SOLDER
