- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for KLDHCX-8-0202-A
- Part Number KLDHCX-8-0202-A
- Manufacturer Kycon
- Pin Count 4
- Part Category Connector
- Package Category Other
- Footprint Name Other - KLDHCX-8-0202-A-1
- Released Date Nov 14, 2019
- Last Modified Date Apr 7, 2026 9:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
KLDHCX-8-0202-A Details
-
Manufacturer Part Number:
KLDHCX-8-0202-A
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Kycon Inc
-
YTEOL:
6.25
-
Body Breadth:
0.354 inch
-
Body Depth:
0.512 inch
-
Body Length:
0.394 inch
KLDHCX-8-0202-A Frequently Asked Questions (FAQs)
-
The recommended torque specification for the KLDHCX-8-0202-A is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks and 0.2-0.5 Nm (1.7-4.4 in-lbs) for the jackscrews.
-
Yes, the KLDHCX-8-0202-A is designed to withstand high-vibration environments and meets the IEC 60512-11-4 standard for vibration testing.
-
The operating temperature range for the KLDHCX-8-0202-A is -40°C to 105°C (-40°F to 221°F).
-
Yes, the KLDHCX-8-0202-A is designed to operate in harsh environments and meets the IP67 rating for ingress protection. However, it's recommended to consult with Kycon Inc for specific environmental requirements.
-
The KLDHCX-8-0202-A has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
Trust Checks
Expert Contribution
System Verified
Community Approved
KLDHCX-8-0202-A Overview

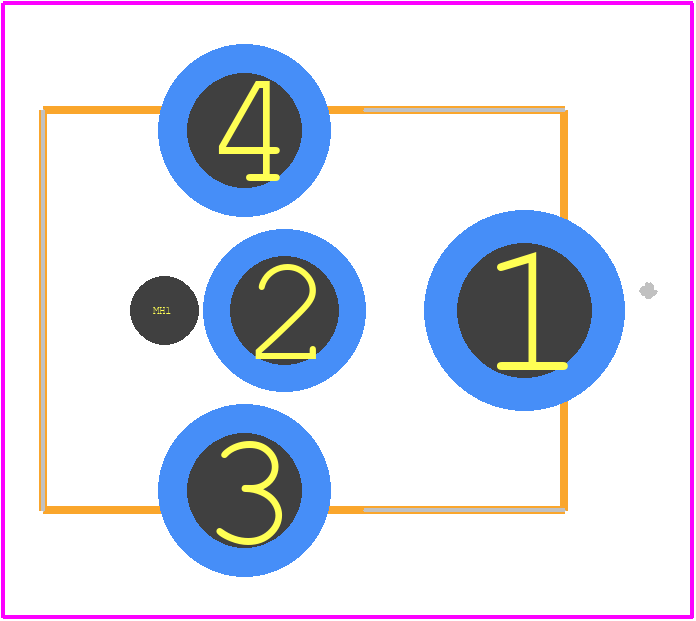

Use the download button to access the KLDHCX-8-0202-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KLDHC,
or try a keyword search, such as DC Power Plugs or Jacks
