- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for KLDPX-0207-A
- Part Number KLDPX-0207-A
- Manufacturer Kycon
- Pin Count 3
- Part Category Connector
- Package Category Other
- Footprint Name Other - KLDPX-0207-A-2
- Released Date Nov 12, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
KLDPX-0207-A Details
-
Manufacturer Part Number:
KLDPX-0207-A
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Kycon Inc
-
YTEOL:
0.4
-
Body/Shell Style:
JACK
-
Connector Type:
DC POWER JACK
-
Contact Finish Mating:
NOT SPECIFIED
KLDPX-0207-A Frequently Asked Questions (FAQs)
-
The recommended torque is 0.5-1.5 Nm (4.4-13.4 in-lbs) for the screw terminals.
-
Yes, the KLDPX-0207-A is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
-
The operating temperature range for the KLDPX-0207-A is -40°C to 105°C (-40°F to 221°F).
-
Yes, the connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The maximum current rating for each contact is 2.5A, but it's recommended to derate the current based on the operating temperature and other environmental factors.
Trust Checks
Expert Contribution
System Verified
Community Approved
KLDPX-0207-A Overview

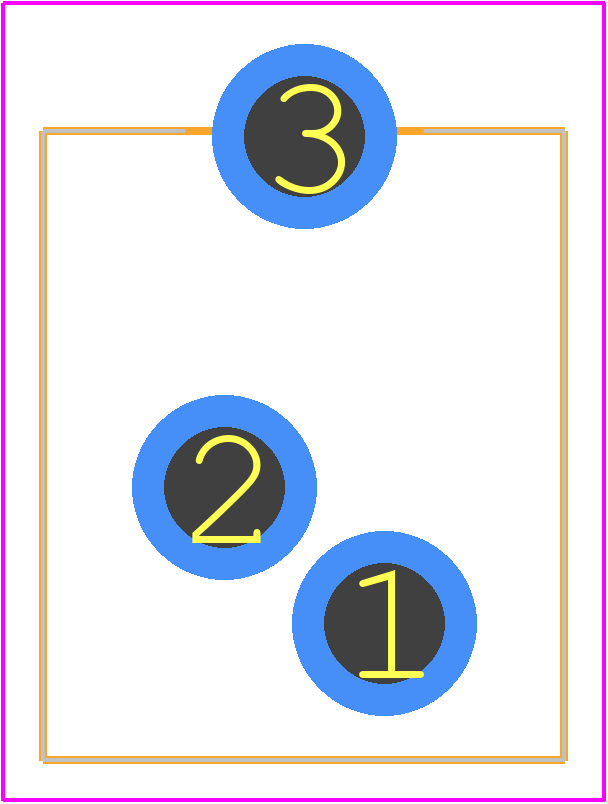

Use the download button to access the KLDPX-0207-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KLDPX,
or try a keyword search, such as DC Power Plugs or Jacks
