KLDX-0202-A - Kycon

Description: DC Power Connectors 2mm PCB JACK POWER JACK

Download KLDX-0202-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KLDX-0202-A - Kycon - PCB symbol
click to zoom
PCB Footprints

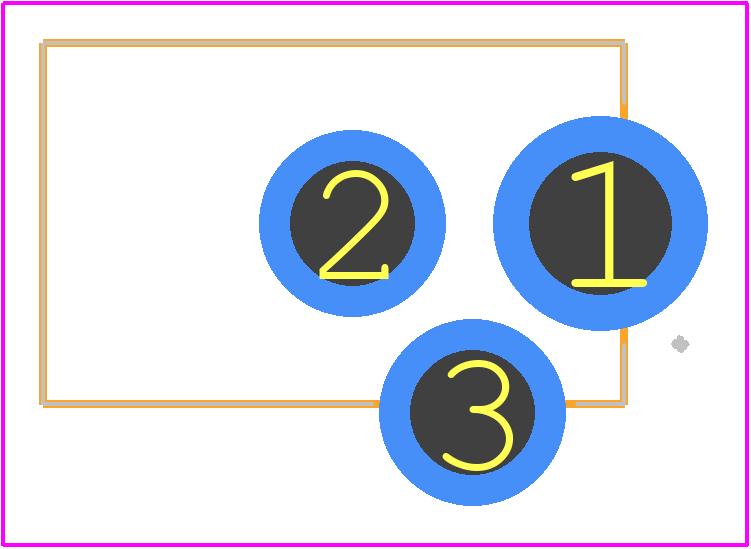

KLDX-0202-A - Kycon PCB footprint - Other - Other - KLDX-0202-A-2
click to zoom
3D Models
KLDX-0202-A - Kycon - 3D model - Other - KLDX-0202-A-2
click to zoom

KLDX-0202-A Details

  • Manufacturer Part Number:

    KLDX-0202-A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Kycon Inc

  • YTEOL:

    6.25

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2 mm

  • Rated Current (Power):

    3.5 A

  • Rated Voltage:

    24 V

  • Termination Type:

    SOLDER

KLDX-0202-A Frequently Asked Questions (FAQs)

  • The recommended torque for the KLDX-0202-A connector is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the KLDX-0202-A connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial, automotive, and aerospace.
  • Yes, the KLDX-0202-A connector is designed to operate in harsh environments, including extreme temperatures (-40°C to 125°C), humidity, and exposure to chemicals.
  • The KLDX-0202-A connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the KLDX-0202-A connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in global markets.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KLDX-0202-A Overview

Use the download button to access the KLDX-0202-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KLDX-, or try a keyword search, such as DC Power Plugs or Jacks
