KLDX-0202-BC - Kycon

Description: DC Power Connectors 2.5mm PCB JACK CRIMP CRIMPED LEADS

Download KLDX-0202-BC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KLDX-0202-BC - Kycon - PCB symbol
click to zoom
PCB Footprints

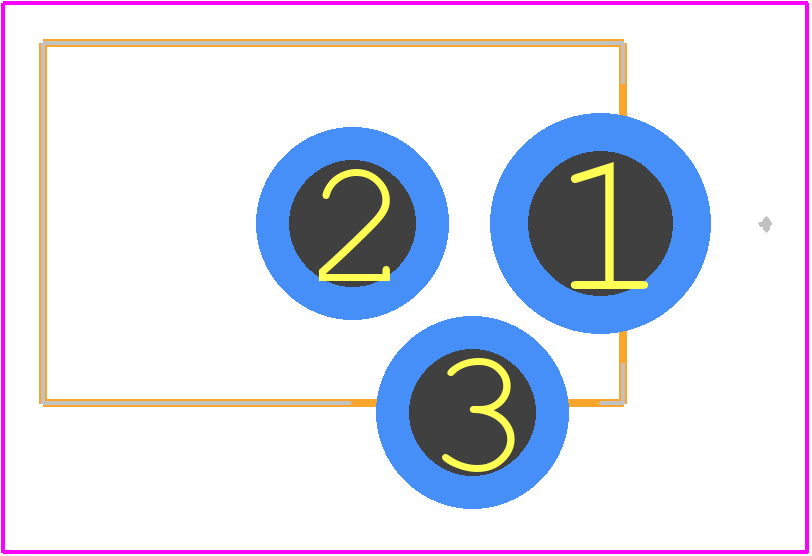

KLDX-0202-BC - Kycon PCB footprint - Other - Other - KLDX-0202-BC-2
click to zoom
3D Models
KLDX-0202-BC - Kycon - 3D model - Other - KLDX-0202-BC-2
click to zoom

KLDX-0202-BC Details

  • Manufacturer Part Number:

    KLDX-0202-BC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Kycon Inc

  • YTEOL:

    6.25

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2.5 mm

  • Rated Current (Power):

    3.5 A

  • Rated Voltage:

    24 V

  • Termination Type:

    SOLDER
