Part Image

KM681000CLP-7L - SAMSUNG

Description: 128K x8 bit Low Power CMOS Static RAM

Download KM681000CLP-7L Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KM681000CLP-7L model

Email notifications will be applied after download.

Send part feedback

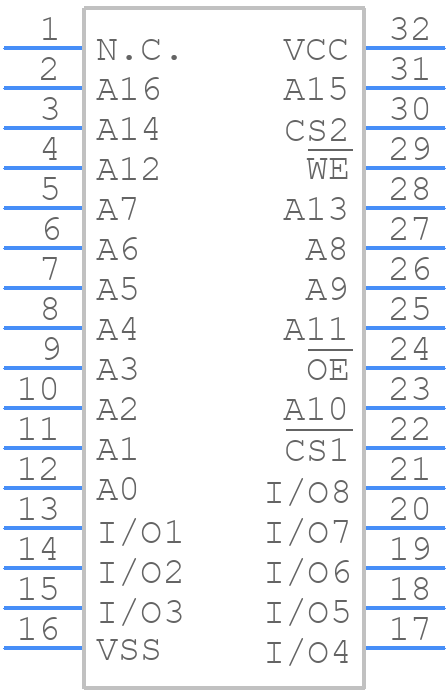

Symbol

KM681000CLP-7L - SAMSUNG - PCB symbol

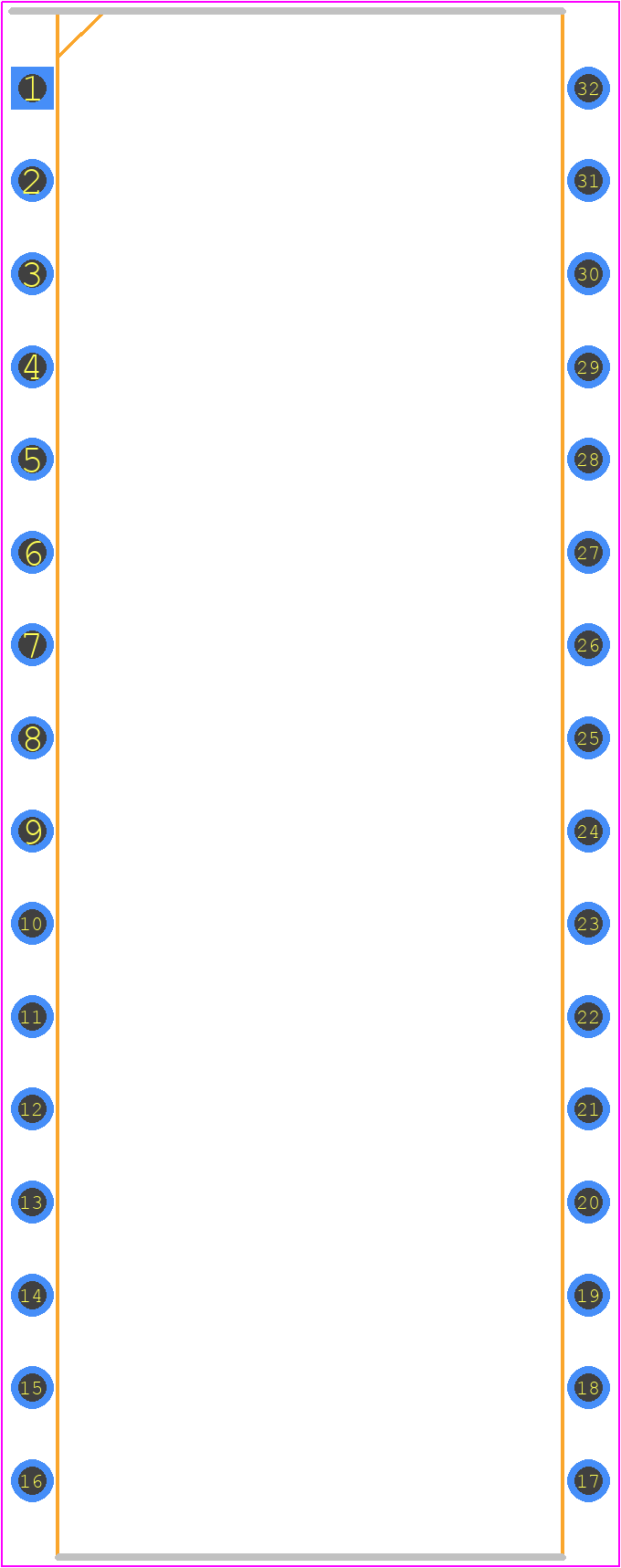

PCB Footprints

KM681000CLP-7L - SAMSUNG PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 32 DUAL INLINE PACKAGE (600mil)

3D Models

KM681000CLP-7L - SAMSUNG - 3D model - Dual-In-Line Packages - 32 DUAL INLINE PACKAGE (600mil)

Datasheet Download Datasheet
Stock & Prices Price & Stock for KM681000CLP-7L
Part Number KM681000CLP-7L
Manufacturer SAMSUNG
Pin Count 32
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 32 DUAL INLINE PACKAGE (600mil)
Released Date Aug 1, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

KM681000CLP-7L Details

Manufacturer Part Number:
KM681000CLP-7L
Manufacturer:
Samsung Electro-Mechanics

Trust Checks

Community Provided

System Verified

Community Approved

KM681000CLP-7L Overview

Use the download button to access the KM681000CLP-7L schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KM681, or try a keyword search, such as SRAMs
