KMDVLX-6S-N-1 - Kycon

Description: 6 Position Circular Connector Receptacle, Female Sockets Solder Rated Current: 2A Max. Rated Voltage: 12V DC,50 Megohms Min. at 500V DC -25°C to +85°C

Download KMDVLX-6S-N-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KMDVLX-6S-N-1 - Kycon - PCB symbol
click to zoom
PCB Footprints

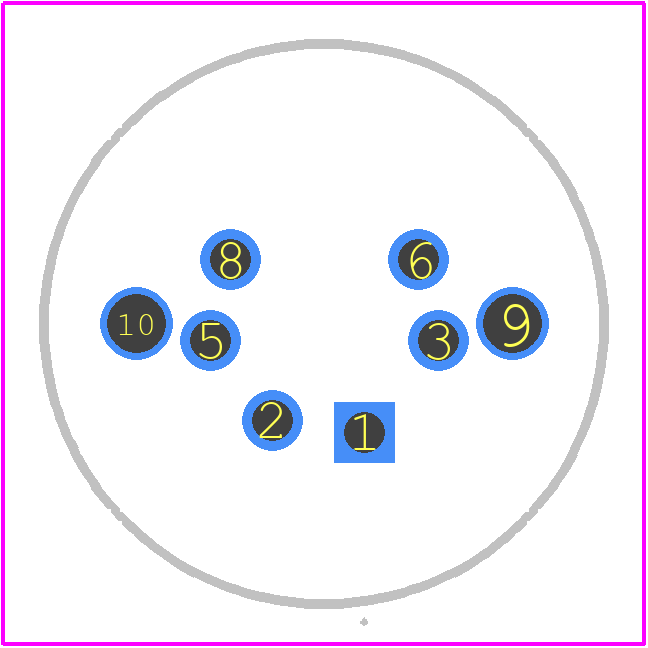

KMDVLX-6S-N-1 - Kycon PCB footprint - Other - Other - KMDVLX-6S-N-1-4
click to zoom
3D Models
KMDVLX-6S-N-1 - Kycon - 3D model - Other - KMDVLX-6S-N-1-4
click to zoom

KMDVLX-6S-N-1 Details

  • Manufacturer Part Number:

    KMDVLX-6S-N-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Kycon Inc

  • Additional Feature:

    STANDARD: 94V-0

  • Board Mounting Option:

    SOLDER HOLDING FLANGE

  • Body Depth:

    0.374 inch

  • Connector Type:

    MINI DIN CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    5000 Cycles

  • EMI Shielded:

    YES

  • Insertion Force-Max:

    29.42 N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE/POLYETHYLENE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    CSA,CUL,UL

  • Shell Finish:

    TIN

  • Shell Material:

    BRASS

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

KMDVLX-6S-N-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screws on the KMDVLX-6S-N-1 connector.
  • Yes, the KMDVLX-6S-N-1 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
  • The operating temperature range for the KMDVLX-6S-N-1 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the KMDVLX-6S-N-1 connector is designed to operate in harsh environments, including those with high humidity or exposure to chemicals. However, it's essential to follow proper sealing and protection guidelines to ensure the connector's reliability.
  • The KMDVLX-6S-N-1 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent connections and disconnections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KMDVLX-6S-N-1 Overview

Use the download button to access the KMDVLX-6S-N-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KMDVL, or try a keyword search, such as DIN Connectors
