KMS15A-5 - TDK Lambda

Description: AC-DC Power Supplies, PCB Mount, Output: 15W, 5V, for medical equipment, Class II input

Download KMS15A-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KMS15A-5 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

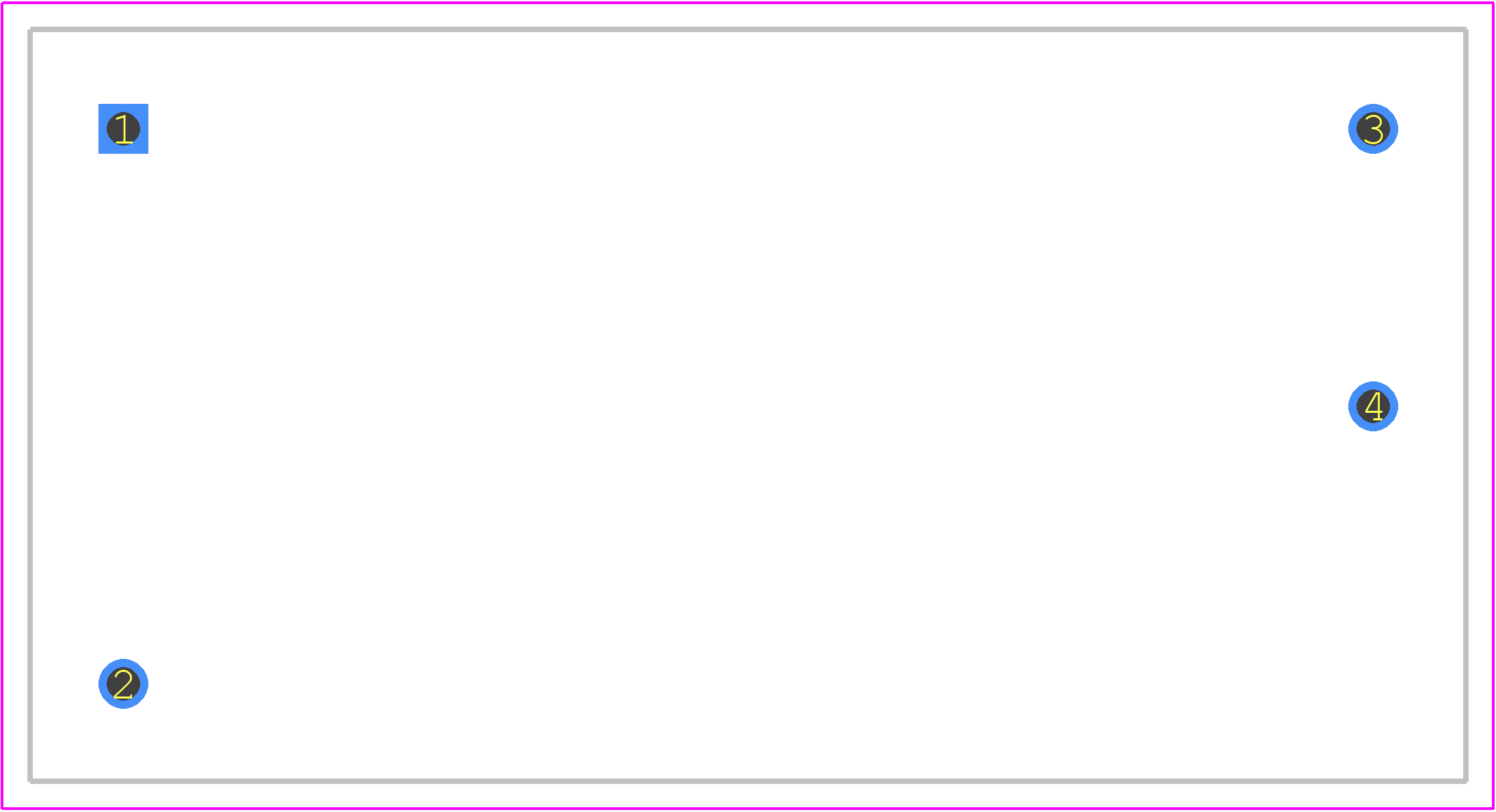

KMS15A-5 - TDK Lambda PCB footprint - Other - Other - KMS15A-9
click to zoom
3D Models
KMS15A-5 - TDK Lambda - 3D model - Other - KMS15A-9
click to zoom

KMS15A-5 Details

  • Manufacturer Part Number:

    KMS15A-5

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

KMS15A-5 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the KMS15A-5 is -20°C to +71°C, with a derating of 2.5% per °C above 50°C.
  • Yes, the KMS15A-5 is designed to operate in a humid environment, but it's recommended to take precautions to prevent moisture ingress, such as conformal coating or potting.
  • The recommended input fuse rating for the KMS15A-5 is 2A slow-blow type, but this may vary depending on the specific application and system requirements.
  • Yes, the KMS15A-5 can be used in a redundant configuration, but it's essential to ensure that the power supplies are synchronized and that the system is designed to handle the redundancy.
  • The MTBF rating for the KMS15A-5 is approximately 550,000 hours, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KMS15A-5 Overview

Use the download button to access the KMS15A-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KMS15, or try a keyword search, such as Power Supply Modules
