Part Image

KP01.1152.11 - SCHURTER

Description: CAD-Model shows variation protection class I, screw mounting on PCB, with self-tapping screw Ø3x8 mm, switch 2-pole non illuminated, earth conductor 4.8x0.8mm

Download KP01.1152.11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KP01.1152.11 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

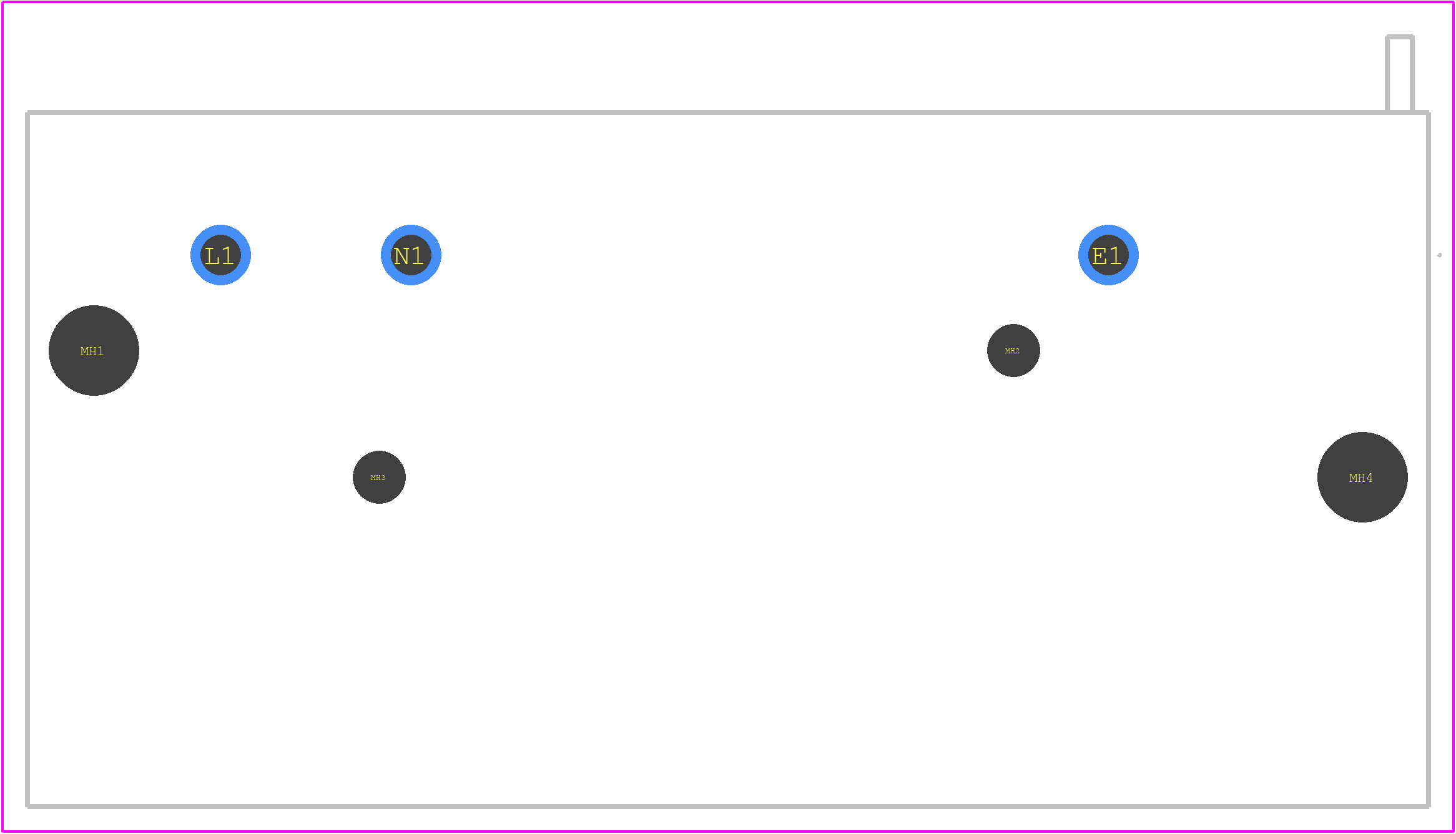

KP01.1152.11 - SCHURTER PCB footprint - Other - Other - KP01.1152.11-6
click to zoom
3D Models
KP01.1152.11 - SCHURTER - 3D model - Other - KP01.1152.11-6
click to zoom

KP01.1152.11 Details

  • Manufacturer Part Number:

    KP01.1152.11

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C14, CSA, UL498, UL 94V-0, VDE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10/15A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    QUICK CONNECT

  • Total Number of Contacts:

    3

KP01.1152.11 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of KP01.1152.11 is 0.5 Nm to 1.5 Nm, as specified in the manufacturer's documentation.
  • Yes, KP01.1152.11 is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to consult with Schurter's application engineers for specific vibration requirements.
  • Yes, KP01.1152.11 is compatible with high-temperature soldering up to 260°C for 10 seconds, as specified in the datasheet.
  • Yes, KP01.1152.11 is designed to operate in humid environments with a relative humidity of up to 95% at 40°C, according to IEC 60068-2-30.
  • The recommended wire size for the screw terminals of KP01.1152.11 is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KP01.1152.11 Overview

Use the download button to access the KP01.1152.11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KP01., or try a keyword search, such as Mains Power Connectors
