KP0421500000G - Amphenol

Description: Fixed Terminal Blocks TB RIS CL INTERLACE

Download KP0421500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KP0421500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

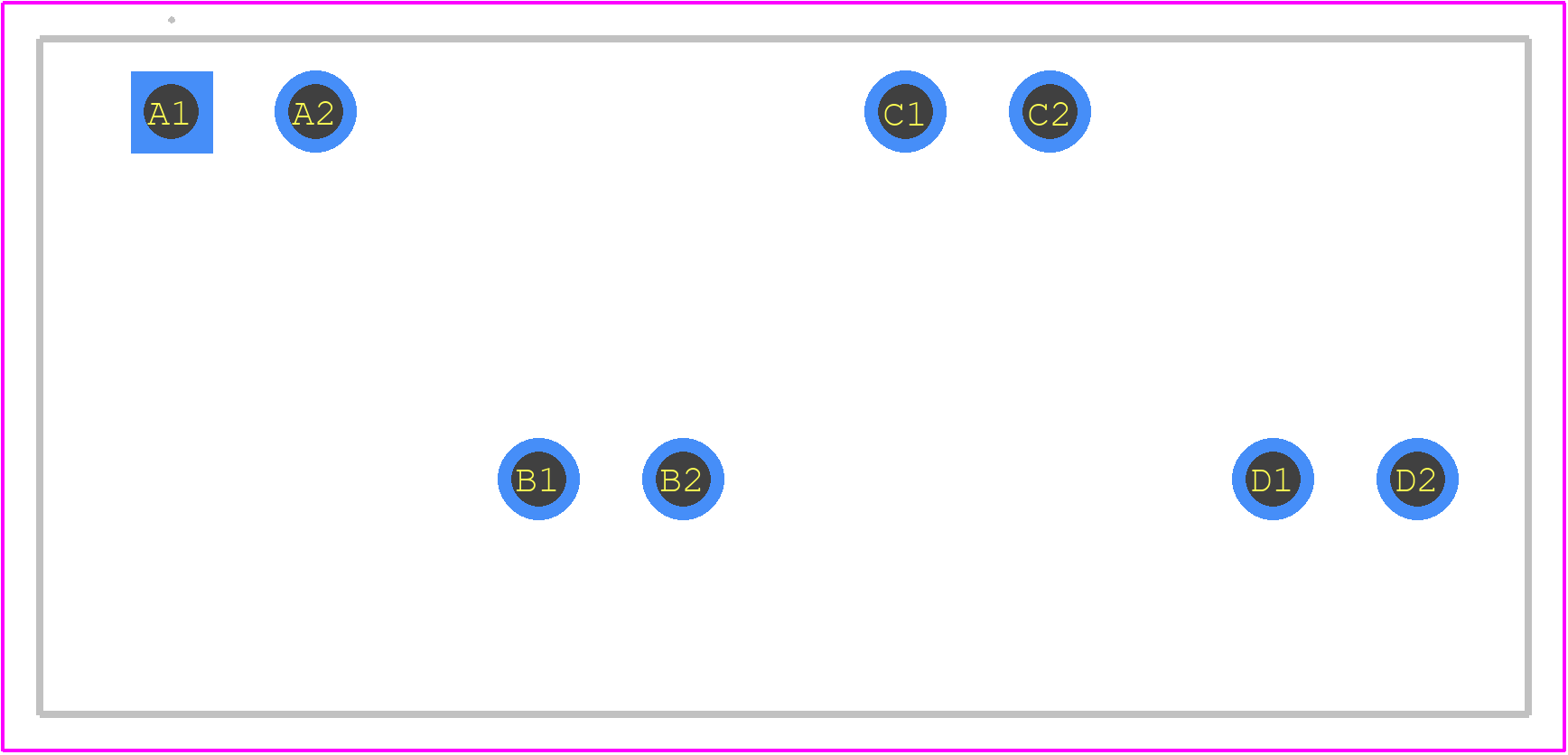

KP0421500000G - Amphenol PCB footprint - Other - Other - KP0421500000G-1
click to zoom
3D Models
KP0421500000G - Amphenol - 3D model - Other - KP0421500000G-1
click to zoom

KP0421500000G Details

  • Manufacturer Part Number:

    KP0421500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    6.99

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    SCREW CLAMP

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    65 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    5.26 mm2

  • Wire Gauge:

    10 AWG

KP0421500000G Frequently Asked Questions (FAQs)

  • The recommended torque value for the KP0421500000G connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw locks and 15-18 in-lbs (1.7-2.0 Nm) for the jack screws.
  • Yes, the KP0421500000G connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the KP0421500000G connector is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and a humidity rating of 95% RH at 40°C.
  • The KP0421500000G connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
  • Yes, the KP0421500000G connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances.
