- Part Number KP13B-SF-PEJ(800)
- Manufacturer Hirose
- Pin Count 13
- Part Category Connector
- Package Category Other
- Footprint Name Other - KP13B-SF-PEJ(800)-3
- Released Date Mar 20, 2020
- Last Modified Date Oct 17, 2025 11:27 AM UTC
- Pinout / Pin List Click Here (Member Only)
KP13B-SF-PEJ(800) Details
-
Manufacturer Part Number:
KP13B-SF-PEJ(800)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
Body/Shell Style:
SOCKET
-
Connector Type:
PCB CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
KP13B-SF-PEJ(800) Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5 N·m to 1.5 N·m (5 to 13 in-lbs) for the screw terminals.
-
Yes, the KP13B-SF-PEJ(800) is designed to withstand vibrations and is suitable for use in high-vibration applications.
-
The operating temperature range for the KP13B-SF-PEJ(800) is -40°C to 105°C (-40°F to 221°F).
-
Yes, the KP13B-SF-PEJ(800) is compatible with lead-free soldering processes.
-
The mating cycle rating for the KP13B-SF-PEJ(800) is 500 cycles.
Trust Checks
Expert Contribution
System Verified
Community Approved
KP13B-SF-PEJ(800) Overview

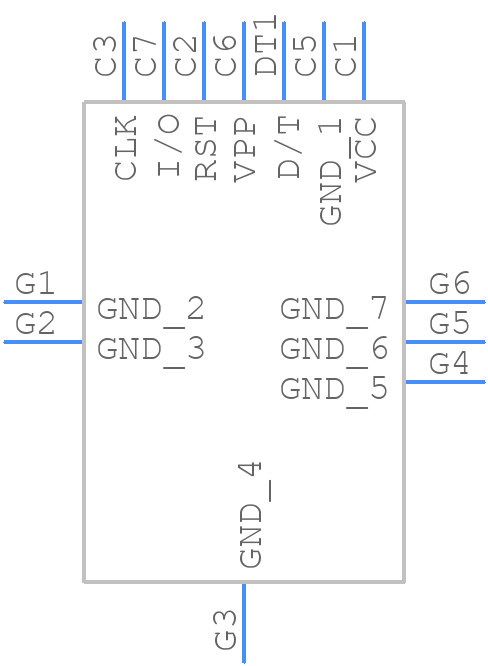

Use the download button to access the KP13B-SF-PEJ(800) schematic symbol, PCB footprint, and 3D model.
