KP215F1701XTMA1 - Infineon

Description: KP215F1701XTMA1, Absolute Pressure Sensor, 115 kPa, 1150 mbar 0.1 → 4.85 V Output, 8-Pin DSOF

Download KP215F1701XTMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

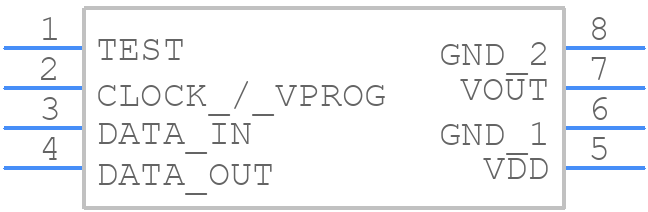

KP215F1701XTMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
KP215F1701XTMA1 - Infineon PCB footprint - Other - Other - PG-DSOF-8--16
click to zoom
3D Models
KP215F1701XTMA1 - Infineon - 3D model - Other - PG-DSOF-8--16
click to zoom

KP215F1701XTMA1 Details

  • Manufacturer Part Number:

    KP215F1701XTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN, PLASTIC, SOF-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    11

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-F8

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOF

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    2.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    FLAT

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7 mm
