KP229F0711XTMA1 - Infineon

Description: Board Mount Pressure Sensors INTEGRATED PRESSURE SENS

Download KP229F0711XTMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

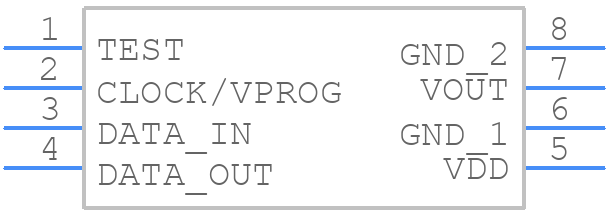

Symbol
KP229F0711XTMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
KP229F0711XTMA1 - Infineon PCB footprint - Other - Other - KP229F0711XTMA1-2
click to zoom
3D Models
KP229F0711XTMA1 - Infineon - 3D model - Other - KP229F0711XTMA1-2
click to zoom

KP229F0711XTMA1 Details

  • Manufacturer Part Number:

    KP229F0711XTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOF-8

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    AEC-Q100

  • Body Breadth:

    7 mm

  • Body Height:

    2.8 mm

  • Body Length or Diameter:

    7 mm

  • Housing:

    PLASTIC/EPOXY

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.4-4.65V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    HOLE

  • Pressure Range-Max:

    36.25 Psi

  • Pressure Range-Min:

    2.9 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    650 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,CAPACITIVE

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

KP229F0711XTMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling capabilities at high temperatures.
  • The device has internal ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. Use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or container.
  • Yes, the KP229F0711XTMA1 is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions and guidelines for these applications.
  • Use a logic analyzer or oscilloscope to monitor the device's inputs and outputs. Check the power supply voltage, decoupling, and PCB layout for any issues. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KP229F0711XTMA1 Overview

Use the download button to access the KP229F0711XTMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KP229, or try a keyword search, such as Pressure Sensors
