- Part Number KP253XTMA1
- Manufacturer Infineon
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - KP253XTMA1-1
- Released Date Sep 29, 2023
- Last Modified Date Sep 29, 2023 6:33 AM UTC
- Pinout / Pin List Click Here (Member Only)
KP253XTMA1 Details
-
Manufacturer Part Number:
KP253XTMA1
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
GREEN, PLASTIC, SOP-8
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
0
-
Additional Feature:
IT ALSO HAS SUPPLY VOLTAGE 4.75 TO 5.25 V
-
Body Breadth:
7 mm
-
Body Height:
2.8 mm
-
Body Length or Diameter:
7 mm
KP253XTMA1 Frequently Asked Questions (FAQs)
-
Infineon provides a dedicated application note (AN2014-01) that outlines the recommended PCB layout and thermal management guidelines for the KP253XTMA1. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal dissipation.
-
When selecting a gate driver for the KP253XTMA1, consider factors such as the driver's output current capability, voltage rating, and propagation delay. Infineon recommends using a gate driver with a high current output (> 2A) and a low propagation delay (< 50ns) to ensure proper switching and minimize losses. The 1EDC20I12MH and 1EDC60N12MH are suitable gate driver options.
-
According to Infineon's application note (AN2014-01), the KP253XTMA1 can withstand a maximum voltage stress of 1.5 times the nominal voltage (Vnom) during startup and shutdown. This means that for a 650V nominal voltage, the device can tolerate up to 975V during these transient events.
-
To ensure EMC in your design, follow Infineon's guidelines for layout, grounding, and shielding. Use a solid ground plane, keep sensitive components away from the power stage, and use shielding components such as ferrite beads and common-mode chokes to minimize EMI radiation. Additionally, consider using a metal casing or shielded enclosure to contain EMI emissions.
-
Infineon provides reliability data for the KP253XTMA1 in the form of FIT (Failure In Time) rates, which are typically in the range of 10-50 FIT/MHz. The device's lifetime expectancy is influenced by factors such as operating temperature, voltage stress, and switching frequency. By following the recommended operating conditions and design guidelines, you can ensure a long and reliable lifetime for the KP253XTMA1.
Trust Checks
Community Provided
System Verified
Community Approved
KP253XTMA1 Overview

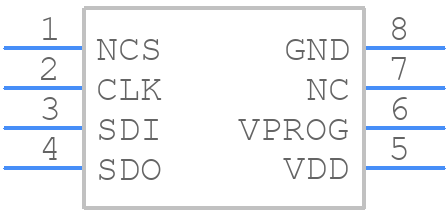

Use the download button to access the KP253XTMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KP253,
or try a keyword search, such as Pressure Sensors
