KPJX-4S-S - Kycon

Description: 4 (Power) Position Circular Connector Jack, Female Sockets Solder

Download KPJX-4S-S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KPJX-4S-S - Kycon - PCB symbol
click to zoom
PCB Footprints

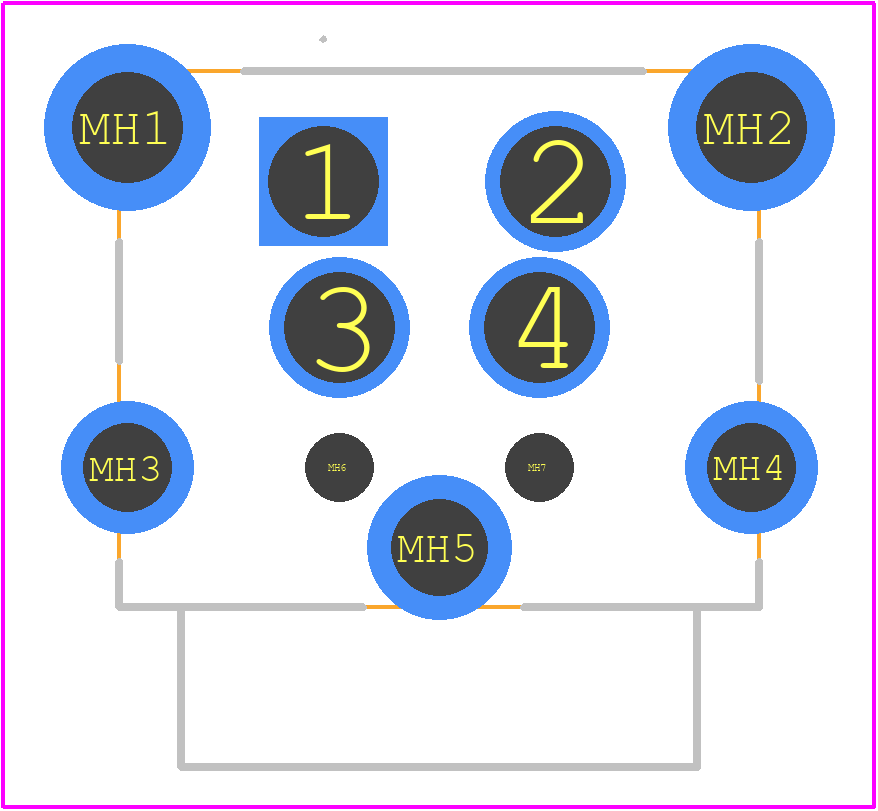

KPJX-4S-S - Kycon PCB footprint - Other - Other - KPJX-4S-S-4
click to zoom
3D Models
KPJX-4S-S - Kycon - 3D model - Other - KPJX-4S-S-4
click to zoom

KPJX-4S-S Details

  • Manufacturer Part Number:

    KPJX-4S-S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Kycon Inc

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: 94V-0

  • Body Breadth:

    0.591 inch

  • Body Depth:

    0.669 inch

  • Body Length:

    0.591 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Power):

    7.5 A

  • Reference Standard:

    CSA,CUL,UL

  • Termination Type:

    SOLDER

KPJX-4S-S Frequently Asked Questions (FAQs)

  • The recommended torque for the KPJX-4S-S connector is 0.5-1.5 N·m (4.4-13.4 in-lbs).
  • Yes, the KPJX-4S-S connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial, automotive, and aerospace.
  • Yes, the KPJX-4S-S connector is designed to operate in harsh environments, including extreme temperatures (-40°C to 125°C), humidity, and exposure to chemicals.
  • The KPJX-4S-S connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
  • Yes, the KPJX-4S-S connector is designed for automated assembly processes, including pick-and-place and robotic assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KPJX-4S-S Overview

Use the download button to access the KPJX-4S-S schematic symbol, PCB footprint, and 3D model.
