KPJX-4S - Kycon

Description: DC Power Connectors 4P JACK SOCKET SNAP AND LOCK, 7.5A Max. @ 48V DC

Download KPJX-4S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KPJX-4S - Kycon - PCB symbol
click to zoom
PCB Footprints

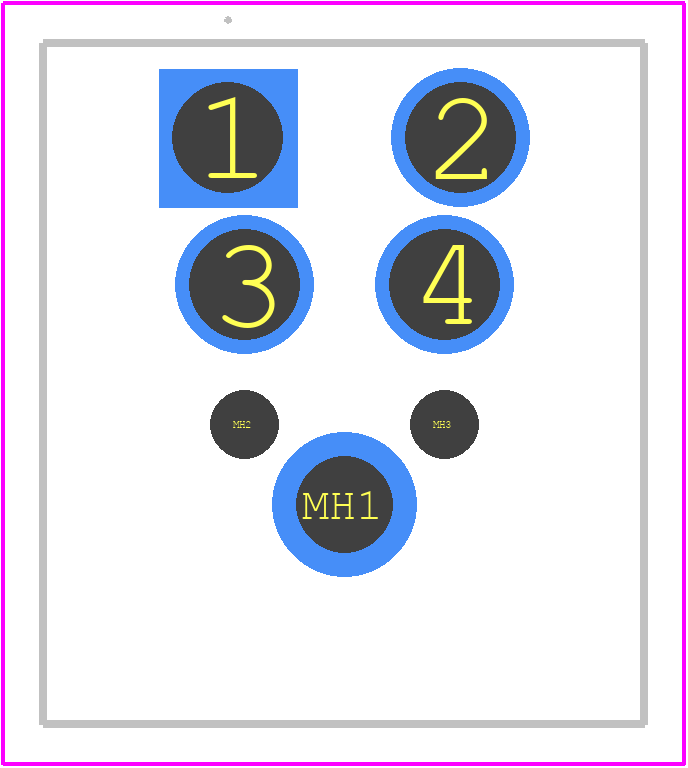

KPJX-4S - Kycon PCB footprint - Other - Other - KPJX-4S-4
click to zoom
3D Models
KPJX-4S - Kycon - 3D model - Other - KPJX-4S-4
click to zoom

KPJX-4S Details

  • Manufacturer Part Number:

    KPJX-4S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Kycon Inc

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: 94V-0

  • Body Breadth:

    0.591 inch

  • Body Depth:

    0.669 inch

  • Body Length:

    0.591 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Power):

    7.5 A

  • Rated Voltage:

    48 V

  • Reference Standard:

    CSA,CUL,UL

  • Termination Type:

    SOLDER

KPJX-4S Frequently Asked Questions (FAQs)

  • The recommended torque value for the KPJX-4S connector is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the KPJX-4S connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
  • Yes, the KPJX-4S connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The KPJX-4S connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the KPJX-4S connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KPJX-4S Overview

Use the download button to access the KPJX-4S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KPJX-, or try a keyword search, such as DC Power Plugs or Jacks
