KPSA10-5 - TDK Lambda

Description: AC-DC Power Supplies, PCB Mount, Output: 10W, 5V, Convection

Download KPSA10-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KPSA10-5 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

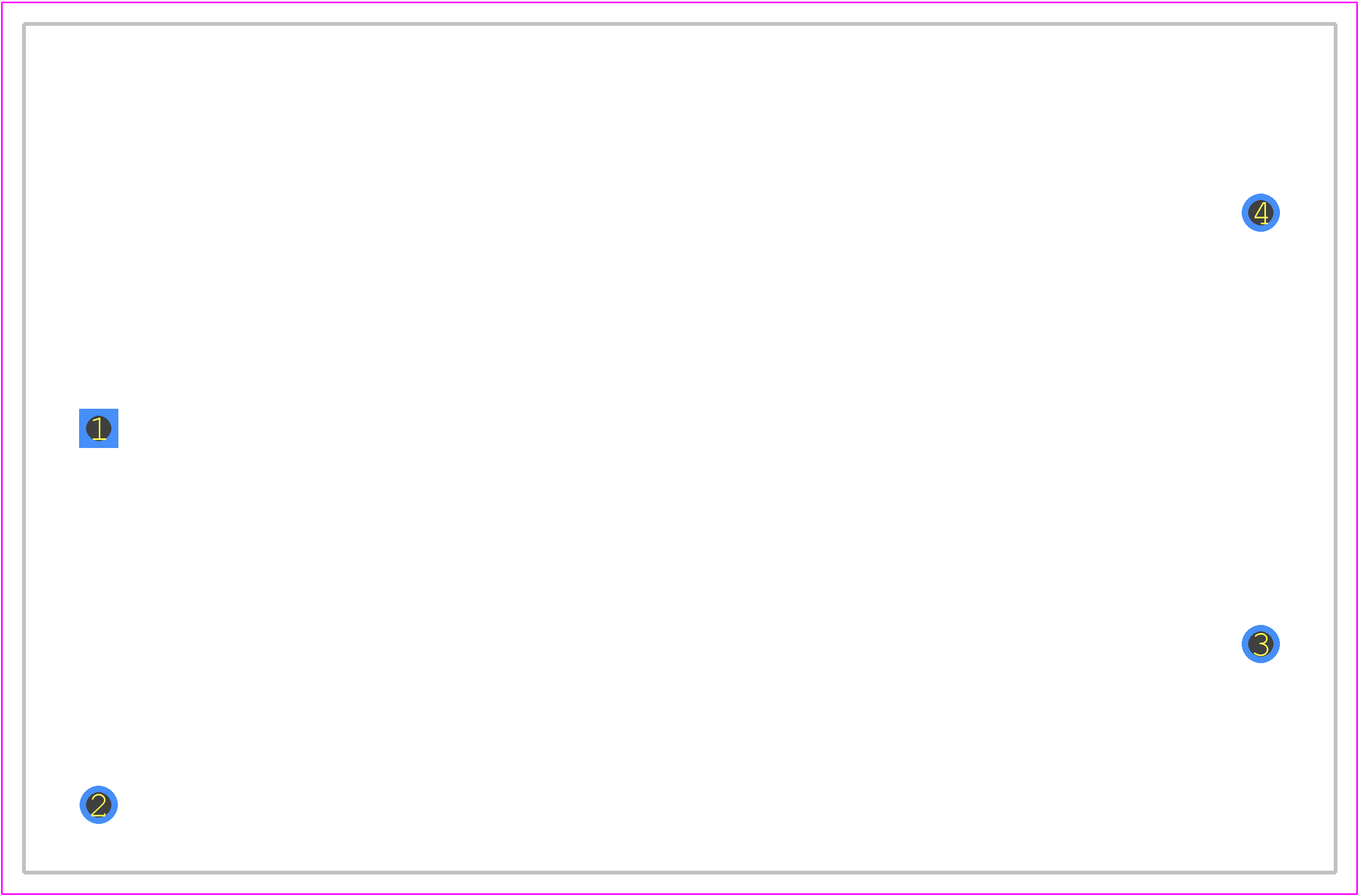

KPSA10-5 - TDK Lambda PCB footprint - Other - Other - KPSA10-12
click to zoom
3D Models
KPSA10-5 - TDK Lambda - 3D model - Other - KPSA10-12
click to zoom

KPSA10-5 Details

  • Manufacturer Part Number:

    KPSA10-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

KPSA10-5 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the KPSA10-5 is 0°C to 50°C, with derating above 40°C.
  • Yes, the KPSA10-5 is designed to operate in a humid environment, but it's recommended to follow the derating guidelines for high humidity and temperature conditions.
  • The MTBF of the KPSA10-5 is approximately 550,000 hours at 25°C, calculated according to MIL-HDBK-217F.
  • Yes, the KPSA10-5 is compliant with UL60950-1, EN60950-1, and IEC60950-1 safety standards.
  • No, the KPSA10-5 is not designed for use in hazardous locations and should not be used in Class I, Division 2 environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KPSA10-5 Overview

Use the download button to access the KPSA10-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KPSA1, or try a keyword search, such as Power Supply Modules
