KPSA5-24 - TDK Lambda

Description: AC-DC Power Supplies, PCB Mount, Output: 5.5W, 24V, Convection

Download KPSA5-24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KPSA5-24 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

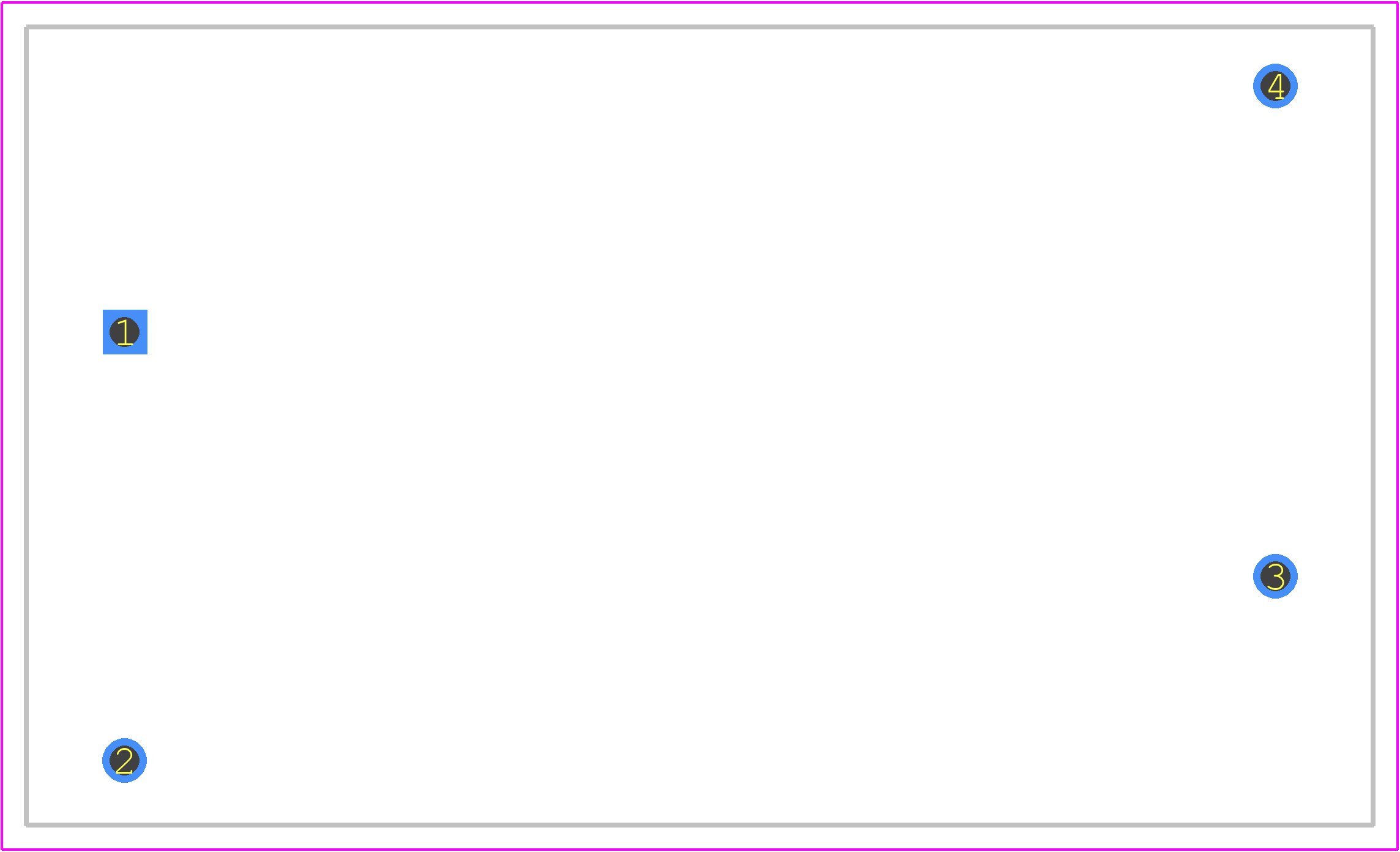

KPSA5-24 - TDK Lambda PCB footprint - Other - Other - KPSA5-
click to zoom
3D Models
KPSA5-24 - TDK Lambda - 3D model - Other - KPSA5-
click to zoom

KPSA5-24 Details

  • Manufacturer Part Number:

    KPSA5-24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

KPSA5-24 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the KPSA5-24 is -20°C to +71°C, with derating above 50°C.
  • Yes, the KPSA5-24 is designed to operate in a humid environment, but it's recommended to follow the derating guidelines for humidity levels above 80% RH.
  • The KPSA5-24 requires a minimum load of 10% of the rated output current to maintain regulation and stability.
  • Yes, the KPSA5-24 can be paralleled for higher power output, but it's recommended to use a master-slave configuration and follow the manufacturer's guidelines for paralleling.
  • The hold-up time for the KPSA5-24 is typically 10ms, which means the output voltage will remain within regulation for at least 10ms in the event of an input power failure.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KPSA5-24 Overview

Use the download button to access the KPSA5-24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KPSA5, or try a keyword search, such as Power Supply Modules
