KRM55WR71H476MH13K - Murata Electronics

Description: Specialty Ceramic Capacitors 47uF 50VDC 20% X7R

Download KRM55WR71H476MH13K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KRM55WR71H476MH13K - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

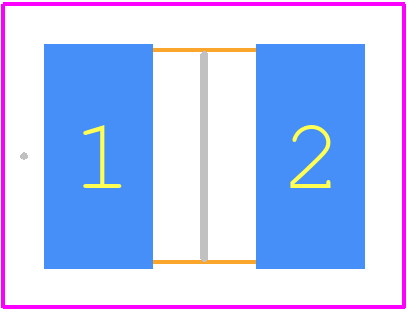

KRM55WR71H476MH13K - Murata Electronics PCB footprint - Other - Other - KRM55
click to zoom
3D Models
KRM55WR71H476MH13K - Murata Electronics - 3D model - Other - KRM55
click to zoom

KRM55WR71H476MH13K Details

  • Manufacturer Part Number:

    KRM55WR71H476MH13K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.20

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    47 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    6.4 mm

  • JESD-609 Code:

    e3

  • Length:

    6.1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    330mm Reel Embossed Tape

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Size Code:

    5750M/2220

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    5.3 mm

KRM55WR71H476MH13K Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 3.3mm x 2.5mm, with a non-solder mask defined (NSMD) pad shape, and a solder mask opening of 2.5mm x 1.5mm.
  • Yes, the KRM55WR71H476MH13K is designed to withstand vibrations up to 30G, making it suitable for use in high-vibration environments. However, it's essential to follow proper mounting and soldering techniques to ensure reliability.
  • The KRM55WR71H476MH13K is rated for operation up to 125°C, with a derating of 1.25% per °C above 85°C. It's essential to consider the temperature coefficient and derating when designing for high-temperature applications.
  • Yes, the KRM55WR71H476MH13K is lead-free and RoHS compliant, making it suitable for use with lead-free soldering processes.
  • Murata recommends storing the KRM55WR71H476MH13K in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid storing the components in direct sunlight or near heat sources.
