Murata recommends a land pattern with a pad size of 3.3mm x 2.5mm, with a non-solder mask defined (NSMD) pad shape, and a solder mask clearance of 0.1mm.
The KRM55WR71H476MH13L is a moisture-sensitive device. It's recommended to store it in a dry environment (less than 30% RH) and bake it at 125°C for 24 hours before soldering if it's been exposed to high humidity.
The maximum reflow temperature for the KRM55WR71H476MH13L is 260°C, with a peak temperature of 250°C for 10 seconds.
Yes, the KRM55WR71H476MH13L is designed to withstand high vibrations. However, it's recommended to follow Murata's guidelines for vibration testing and ensure proper mounting and soldering to prevent damage.
The Equivalent Series Resistance (ESR) of the KRM55WR71H476MH13L is 30mΩ maximum. A lower ESR can improve the capacitor's performance in high-frequency applications, but it's essential to consider other factors like capacitance, voltage, and temperature as well.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KRM55WR71H476MH13L Overview

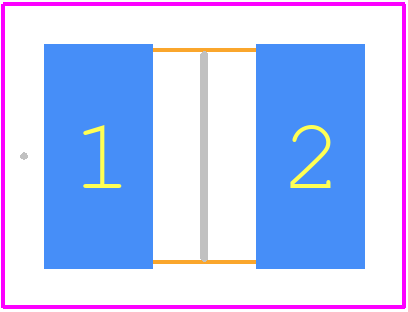

Use the download button to access the KRM55WR71H476MH13L schematic symbol, PCB footprint, and 3D model.
