KSC223J LFG - LITTELFUSE

Description: KSC2 Series Sealed Tactile Switch for SMT 6.2 x 6.2 mm, with 3.5mm Height Soft Actuator, 10 mA, 32 V, -55°C to 125°C

Download KSC223J LFG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this KSC223J LFG model

Email notifications will be applied after download.

Send part feedback

Symbol

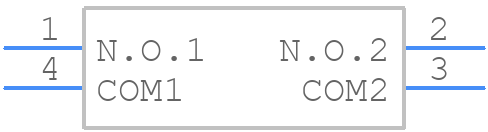

KSC223J LFG - LITTELFUSE - PCB symbol

PCB Footprints

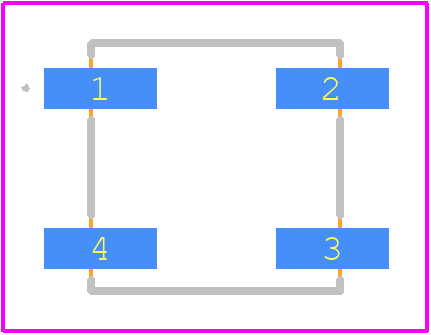

KSC223J LFG - LITTELFUSE PCB footprint - Other - Other - KSC223J LFG-1

3D Models

KSC223J LFG - LITTELFUSE - 3D model - Other - KSC223J LFG-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for KSC223J LFG
Part Number KSC223J LFG
Manufacturer LITTELFUSE
Pin Count 4
Part Category Switch
Package Category Other
Footprint Name Other - KSC223J LFG-1
Released Date Sep 21, 2026
Last Modified Date Sep 19, 2026 10:33 PM UTC
Pinout / Pin List Click Here (Member Only)

KSC223J LFG Details

Manufacturer Part Number:
KSC223J LFG
Manufacturer:
Littelfuse Inc

Trust Checks

Community Provided

System Verified

Community Approved

KSC223J LFG Overview

Use the download button to access the KSC223J LFG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like KSC22, or try a keyword search, such as Keypad Switches
