KSD102 - Otax

KSD102 Details

• Manufacturer Part Number:

  KSD102

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  OTAX Corporation

• Actuator Color:

  WHITE

• Actuator Length:

  0.039 inch

• Actuator Material:

  POLYAMIDE

• Actuator Type:

  KNOB TYPE

• Body Breadth:

  7.5 mm

• Body Color:

  BLACK

• Body Height:

  4.8 mm

• Body Length or Diameter:

  27.3 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact Current(DC)-Max:

  0.01 A

• Contact (DC) Max Rating R Load:

  0.01A@5VDC

• Contact Resistance:

  0.05 mΩ

• Contact Voltage(DC)-Max:

  5 V

• Dielectric Withstand Volts:

  300VAC V

• Electrical Life:

  1000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Housing Material:

  POLYPHENYLENE SULFIDE

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  POLYPHENYLENE SULFIDE

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Switch Sections:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

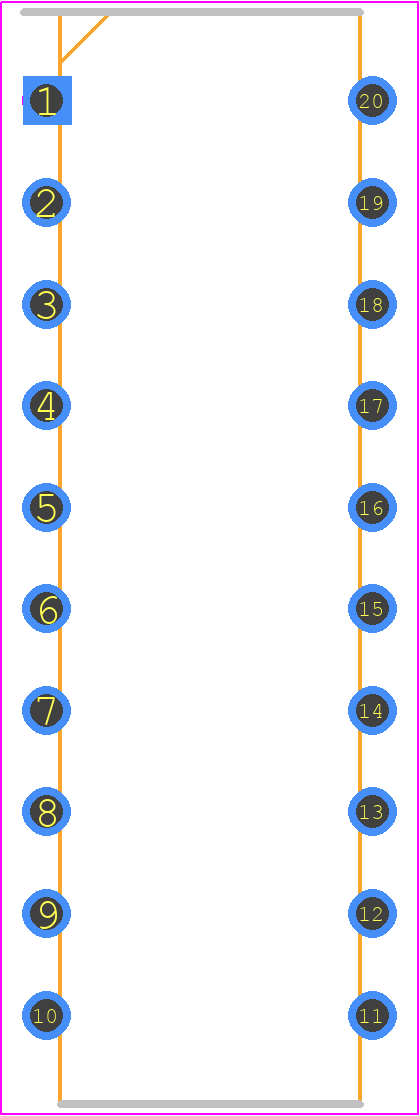

• PCB Hole Count:

  20

• Packing Method:

  BOX; MAGAZINE

• Solderability:

  REFLOW

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Length:

  0.106 inch

• Termination Type:

  SOLDER

• Washability:

  SOLVENT
