Part Image

KSX2-14+ - Mini-Circuits

Description: RF Wireless Misc 2X SMT Multiplier, Output Freq 5000 - 10000 MHz

Download KSX2-14+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

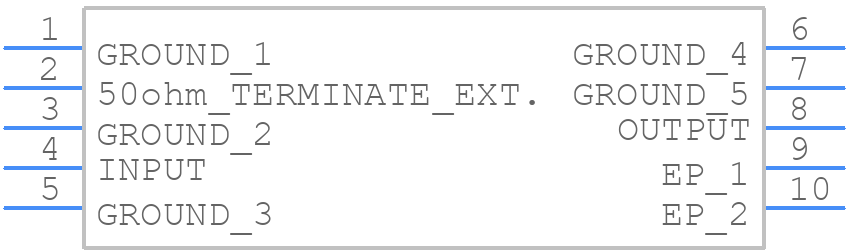

Symbol
KSX2-14+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
KSX2-14+ - Mini-Circuits PCB footprint - Other - Other - KSX2-14+-1
click to zoom
3D Models
KSX2-14+ - Mini-Circuits - 3D model - Other - KSX2-14+-1
click to zoom

KSX2-14+ Details

  • Manufacturer Part Number:

    KSX2-14+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CASE HV1195, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    15 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    5000 MHz

  • Operating Frequency-Min:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Terminal Finish:

    PALLADIUM SILVER

KSX2-14+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The KSX2-14+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to transform the impedance to match your system's requirements. You can use online impedance matching tools or consult with a RF engineer for assistance.
  • The maximum power handling of the KSX2-14+ is not explicitly stated in the datasheet. However, as a general rule, it's recommended to derate the power handling by 1-2 dB to ensure reliable operation. For the KSX2-14+, a safe maximum power handling would be around 20-25 dBm.
  • The KSX2-14+ is rated for operation up to 85°C. However, high temperatures can affect its performance and reliability. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermally conductive material to dissipate heat. Consult with a thermal engineer for guidance.
  • To troubleshoot issues with the KSX2-14+, start by checking the power supply voltage, input/output impedance matching, and signal levels. Use a spectrum analyzer or a vector network analyzer to measure the device's performance. Consult the datasheet and application notes for guidance, and contact Mini-Circuits' technical support if needed.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSX2-14+ Overview

Use the download button to access the KSX2-14+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSX2-, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
