KSZ8001LI-TR - Microchip

Description: Ethernet ICs 10/100 BASE-TX/FX Physical Layer Transceiver

Download KSZ8001LI-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

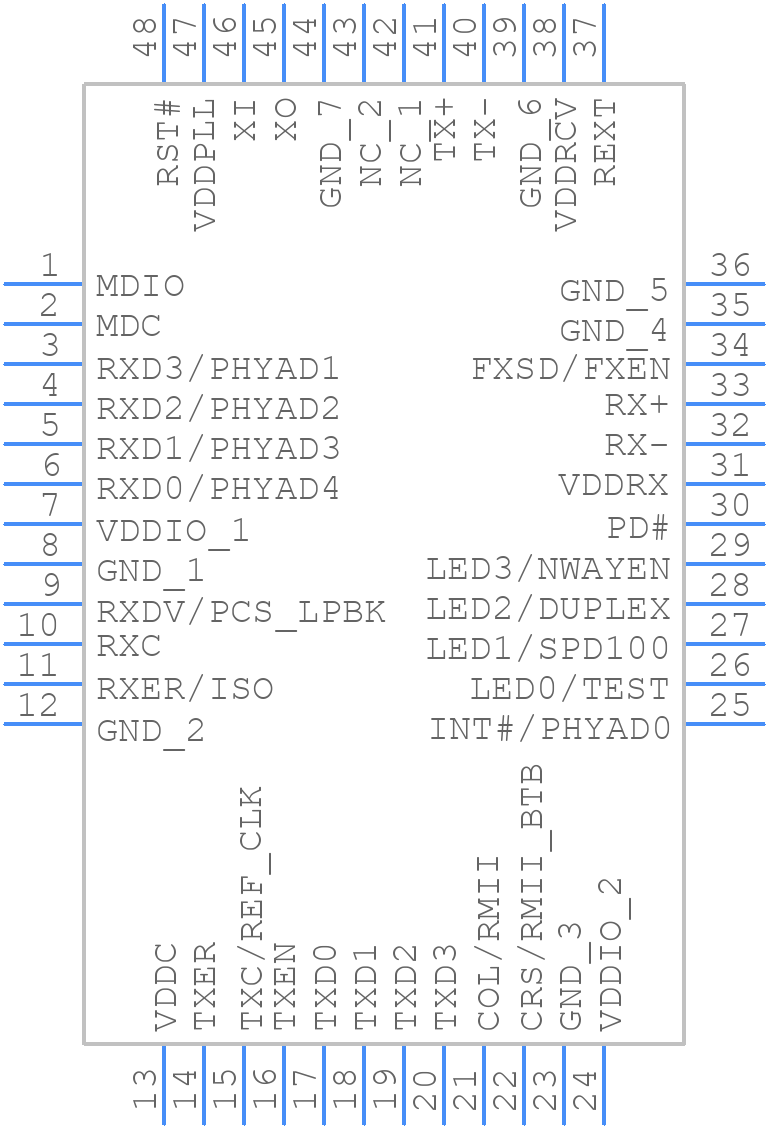

KSZ8001LI-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8001LI-TR - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 LEAD LQFP_1+
click to zoom
3D Models
KSZ8001LI-TR - Microchip - 3D model - Quad Flat Packages - 48 LEAD LQFP_1+
click to zoom

KSZ8001LI-TR Details

  • Manufacturer Part Number:

    KSZ8001LI-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8001LI-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8001LI-TR is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • To ensure reliable operation of the KSZ8001LI-TR in high-temperature environments, it is recommended to use a heat sink, ensure good airflow, and follow the thermal design guidelines provided in the datasheet.
  • The maximum cable length supported by the KSZ8001LI-TR is 100 meters, but this can be extended up to 200 meters using repeaters or switches.
  • To troubleshoot issues with the KSZ8001LI-TR, use a logic analyzer or oscilloscope to check the signal integrity, and verify that the device is properly configured and powered.
  • Yes, the KSZ8001LI-TR can be used in a redundant or fault-tolerant system, but it requires additional circuitry and software to implement the redundancy and fault detection mechanisms.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8001LI-TR Overview

Use the download button to access the KSZ8001LI-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces
