KSZ8041FTLI-TR - Microchip

Description: Ethernet ICs 10/100 BASE-FX Physical Layer Transceiver

Download KSZ8041FTLI-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

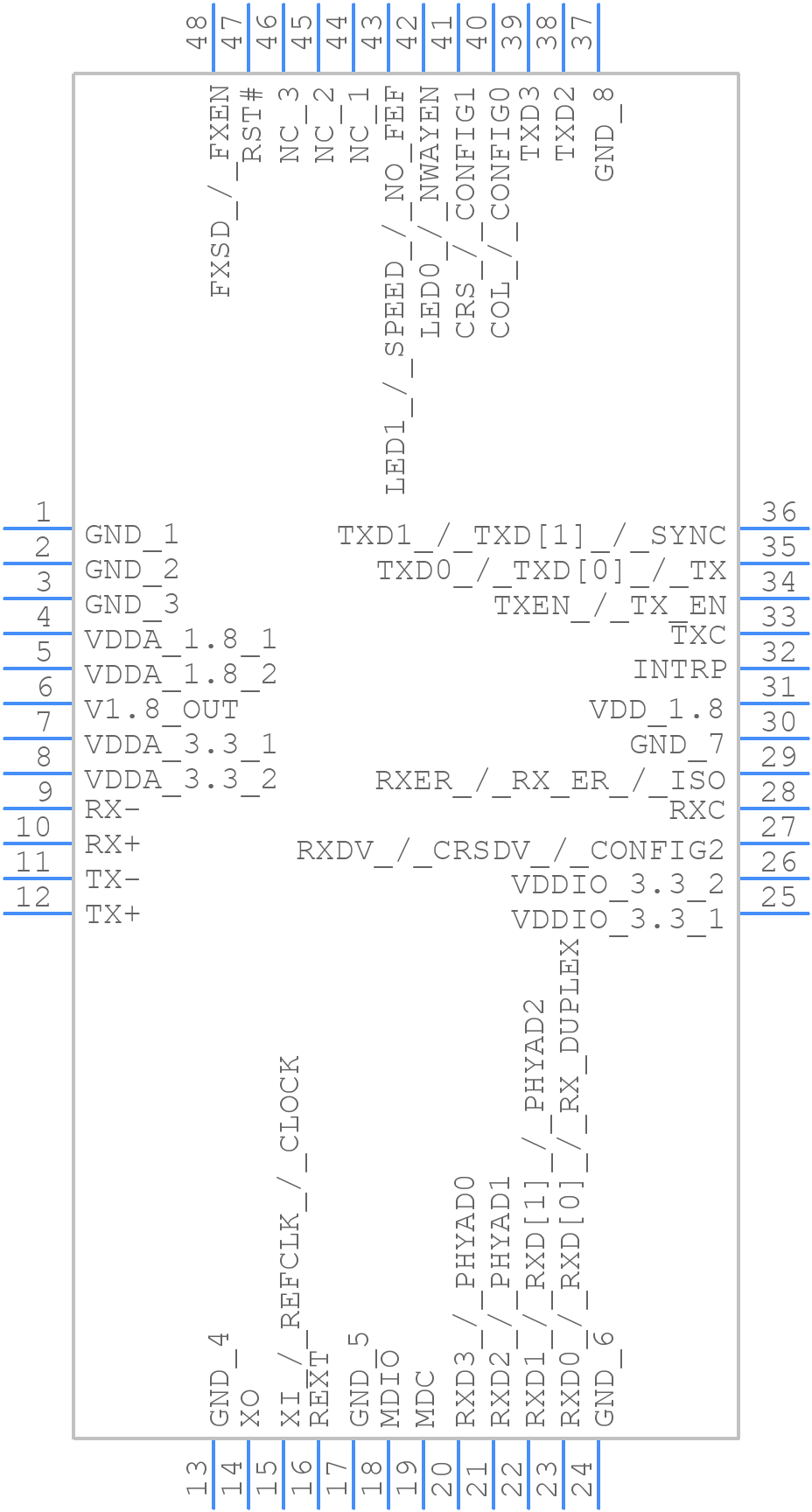

KSZ8041FTLI-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8041FTLI-TR - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP7x7-48LD-PL-1
click to zoom
3D Models
KSZ8041FTLI-TR - Microchip - 3D model - Quad Flat Packages - TQFP7x7-48LD-PL-1
click to zoom

KSZ8041FTLI-TR Details

  • Manufacturer Part Number:

    KSZ8041FTLI-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    TQFP-48

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    58.3 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8041FTLI-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8041FTLI-TR can be found in the Microchip application note AN-2054, which provides guidelines for PCB design, layout, and thermal considerations.
  • The KSZ8041FTLI-TR can be configured for specific network topologies using the Microchip LANCheck online configuration tool or by using the KSZ8041FTLI-TR evaluation board and its associated software.
  • The KSZ8041FTLI-TR has a maximum junction temperature of 150°C. Thermal management considerations include providing adequate heat sinking, using thermal vias, and ensuring good airflow around the device.
  • Troubleshooting issues with the KSZ8041FTLI-TR can be done using the Microchip LANCheck online tool, which provides diagnostic and debugging capabilities. Additionally, the device's built-in self-test (BIST) feature can be used to identify issues.
  • The KSZ8041FTLI-TR is designed to meet EMI and EMC standards, but additional considerations include using shielding, filtering, and grounding to minimize electromagnetic interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8041FTLI-TR Overview

Use the download button to access the KSZ8041FTLI-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
