KSZ8041FTLI - Microchip

Description: MICREL SEMICONDUCTOR - KSZ8041FTLI - Ethernet Controller, 100 Mbps, IEEE 802.3, IEEE 802.3u, 3.135 V, 3.465 V, TQFP, 48 Pins

Download KSZ8041FTLI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

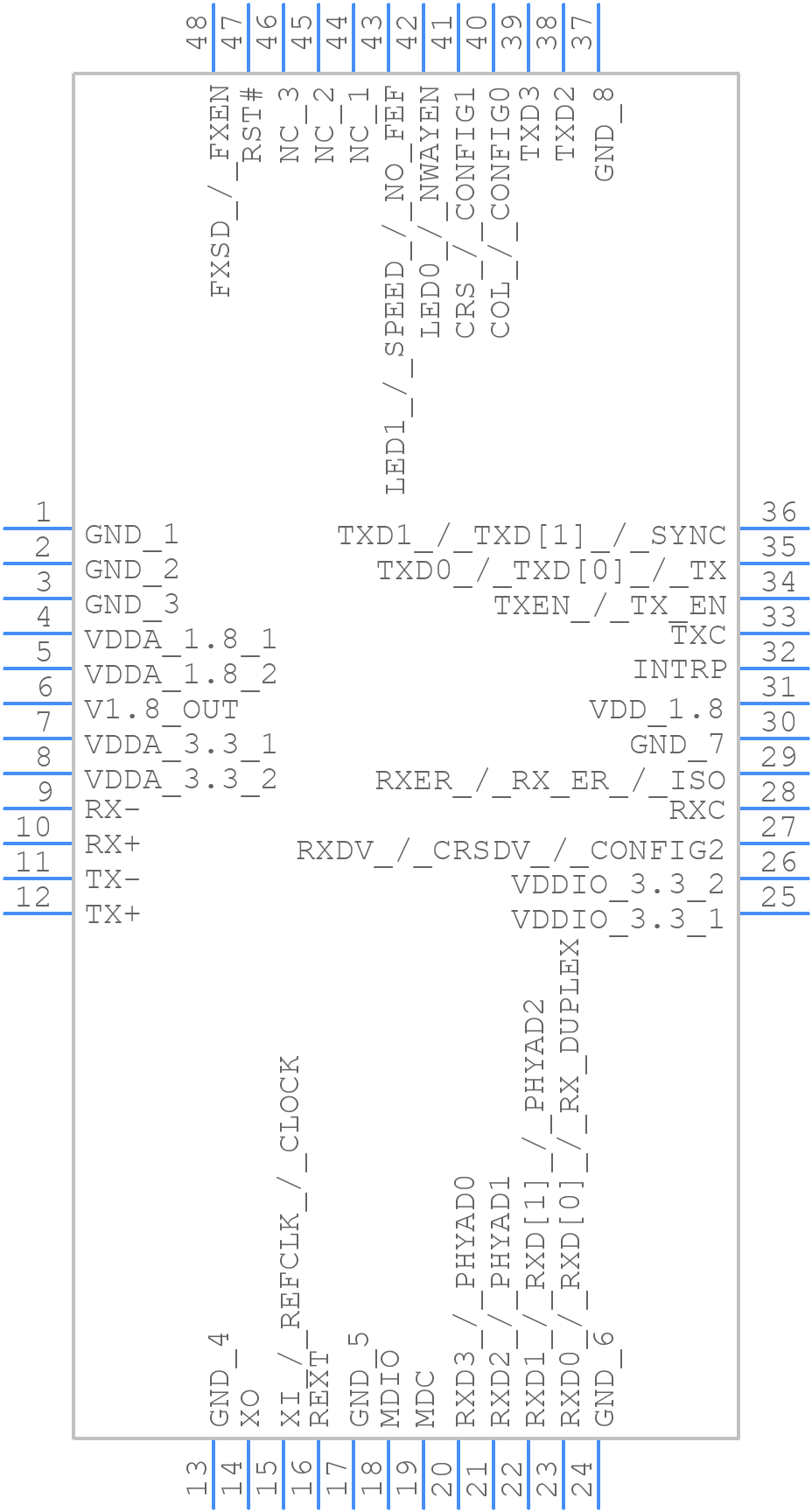

KSZ8041FTLI - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8041FTLI - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 Pin TQFP_
click to zoom
3D Models
KSZ8041FTLI - Microchip - 3D model - Quad Flat Packages - 48 Pin TQFP_
click to zoom

KSZ8041FTLI Details

  • Manufacturer Part Number:

    KSZ8041FTLI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    TQFP-48

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    58.3 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8041FTLI Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8041FTLI is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • The KSZ8041FTLI can be configured for half-duplex or full-duplex operation by setting the appropriate registers. For half-duplex operation, set the TXEN and RXEN pins to toggle between transmit and receive modes. For full-duplex operation, set the TXEN pin high and the RXEN pin low.
  • The maximum cable length supported by the KSZ8041FTLI is 100 meters, assuming a Category 5e or higher cable.
  • To troubleshoot issues with the KSZ8041FTLI, check the device's status registers, verify that the clock signal is stable, and ensure that the power supply is within the recommended range. Also, check for any signal integrity issues on the PCB.
  • The KSZ8041FTLI is designed to support standard Ethernet protocols (10BASE-T, 100BASE-TX, and 1000BASE-T). While it may be possible to use the device with non-standard protocols, it is not recommended and may require significant customization and testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8041FTLI Overview

Use the download button to access the KSZ8041FTLI schematic symbol, PCB footprint, and 3D model.
