KSZ8041MLLI - Microchip

Description: Ethernet ICs 10/100 BASE-TX Physical Layer Transceiver

Download KSZ8041MLLI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

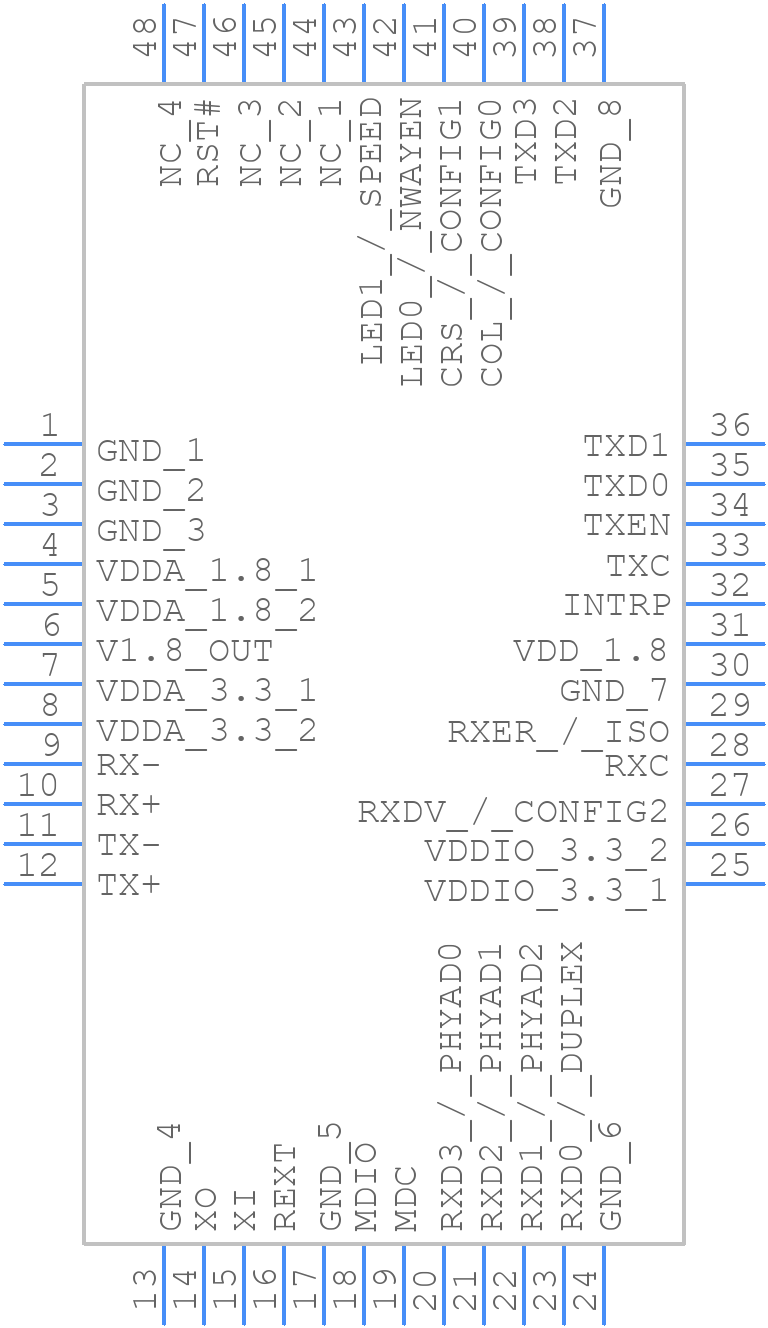

KSZ8041MLLI - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8041MLLI - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 LEAD LQFP_1
click to zoom
3D Models
KSZ8041MLLI - Microchip - 3D model - Quad Flat Packages - 48 LEAD LQFP_1
click to zoom

KSZ8041MLLI Details

  • Manufacturer Part Number:

    KSZ8041MLLI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2017-07-11

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    58.3 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8041MLLI Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8041MLLI is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • The KSZ8041MLLI can be configured for half-duplex or full-duplex operation by setting the appropriate registers. For half-duplex operation, set the RXEN and TXEN pins to enable transmission and reception. For full-duplex operation, set the RXEN pin to enable reception and the TXEN pin to enable transmission.
  • The maximum cable length supported by the KSZ8041MLLI is 100 meters, assuming a Category 5e or higher cable.
  • To troubleshoot issues with the KSZ8041MLLI, check the device's status registers, verify the PCB layout and component placement, and use a logic analyzer or oscilloscope to debug the signal lines.
  • The KSZ8041MLLI is designed to support standard Ethernet protocols (10BASE-T, 100BASE-TX, and 1000BASE-T). Using a non-standard protocol may require custom firmware development and is not recommended.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8041MLLI Overview

Use the download button to access the KSZ8041MLLI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
