- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for KSZ8041NL-AM
- Part Number KSZ8041NL-AM
- Manufacturer Microchip
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 32 Pin QFN_1
- Released Date Feb 1, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
KSZ8041NL-AM Details
-
Manufacturer Part Number:
KSZ8041NL-AM
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
HVQCCN, LCC32,.2SQ,20
-
Pin Count:
32
-
Manufacturer Package Code:
VQFN-32
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8517.70.00.00
-
Manufacturer:
Microchip Technology Inc
KSZ8041NL-AM Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the KSZ8041NL-AM involves placing the device near the RJ-45 connector, using a solid ground plane, and minimizing the length of the traces between the device and the magnetics. A 4-layer PCB is recommended, with the top layer for signals, the second layer for the power plane, the third layer for the ground plane, and the bottom layer for the signals.
-
To ensure reliable operation of the KSZ8041NL-AM in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to 85°C.
-
The KSZ8041NL-AM is designed to meet the EMI and RFI requirements of the IEEE 802.3 standard. To minimize EMI and RFI, it is recommended to use a shielded RJ-45 connector, keep the PCB layout compact, and use a common-mode choke to filter out noise. Additionally, the device should be placed in a metal enclosure to reduce radiation.
-
To troubleshoot issues with the KSZ8041NL-AM, it is recommended to follow a systematic approach, starting with checking the power supply, clock, and reset signals. Then, verify the device configuration and register settings. Use a logic analyzer or oscilloscope to capture and analyze the signals. Finally, consult the datasheet and application notes for troubleshooting guidelines and FAQs.
-
The KSZ8041NL-AM requires a specific power sequencing to ensure proper operation. The recommended power-up sequence is: 1) power up the 3.3V supply, 2) power up the 1.2V supply, and 3) apply the clock signal. The power-down sequence should be reversed. It is also recommended to use a power-on reset circuit to ensure a clean reset during power-up.
Trust Checks
Community Provided
System Verified
Community Approved
KSZ8041NL-AM Overview

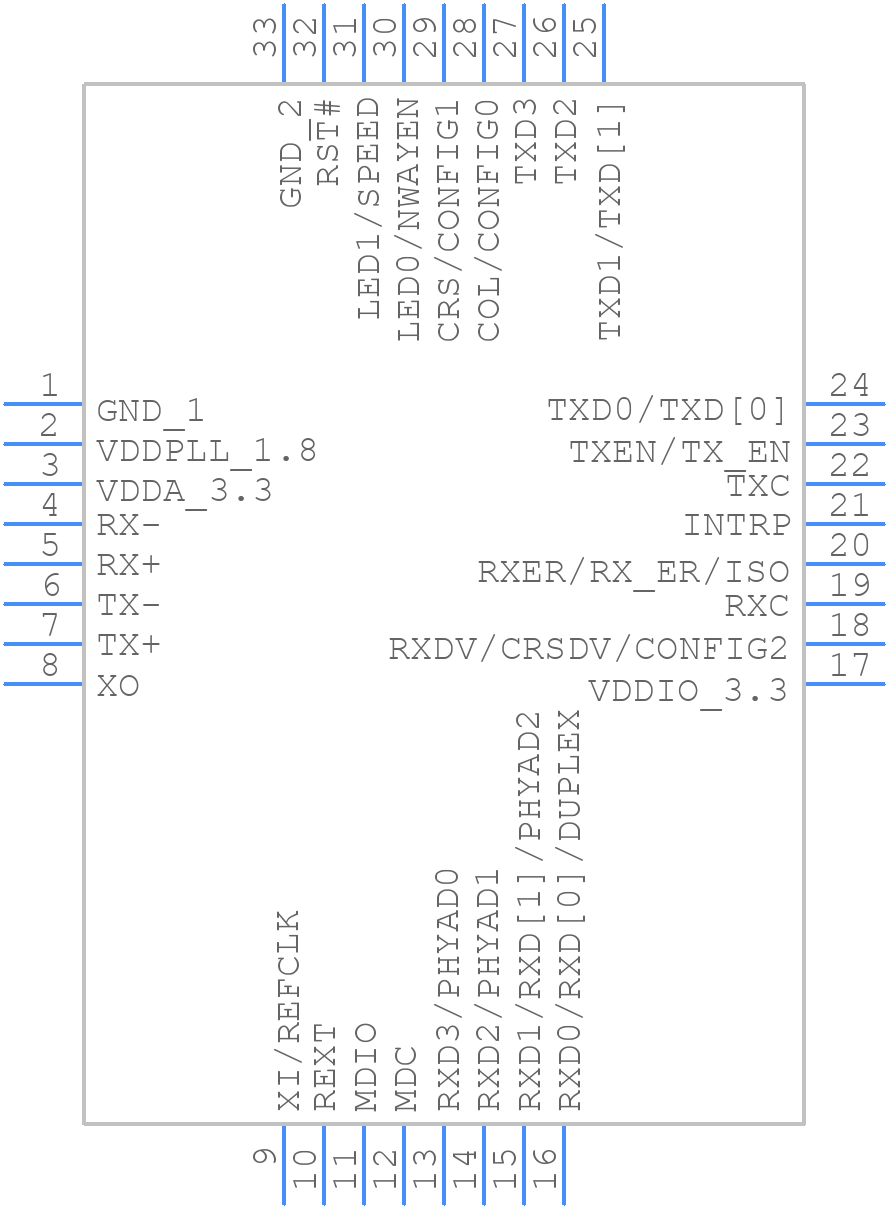

Use the download button to access the KSZ8041NL-AM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80,
or try a keyword search, such as Network Interfaces
