The recommended PCB layout for the KSZ8041TLI involves placing the device near the RJ-45 connector, using a solid ground plane, and minimizing the length of the traces between the device and the magnetics. A 4-layer PCB is recommended, with the top layer for signals, the second layer for the power plane, the third layer for the ground plane, and the bottom layer for the signals.
The KSZ8041TLI can be configured using the SPI interface. The device has several registers that control its operation, such as the PHY control register, the MAC control register, and the station address register. The configuration process involves writing the desired values to these registers using the SPI interface.
The power-up sequence for the KSZ8041TLI involves applying power to the device, waiting for the internal voltage regulator to stabilize, and then bringing the reset pin high. The power-down sequence involves bringing the reset pin low, waiting for the internal voltage regulator to discharge, and then removing power from the device.
Troubleshooting issues with the KSZ8041TLI involves checking the power supply, the clock signal, and the reset signal. It also involves verifying that the device is properly configured and that the magnetics are properly connected. Additionally, using a logic analyzer or an oscilloscope can help identify issues with the SPI interface or the Ethernet signals.
The KSZ8041TLI has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated at a temperature below this maximum value. Thermal considerations include providing adequate heat sinking, using a thermal pad, and ensuring good airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KSZ8041TLI Overview

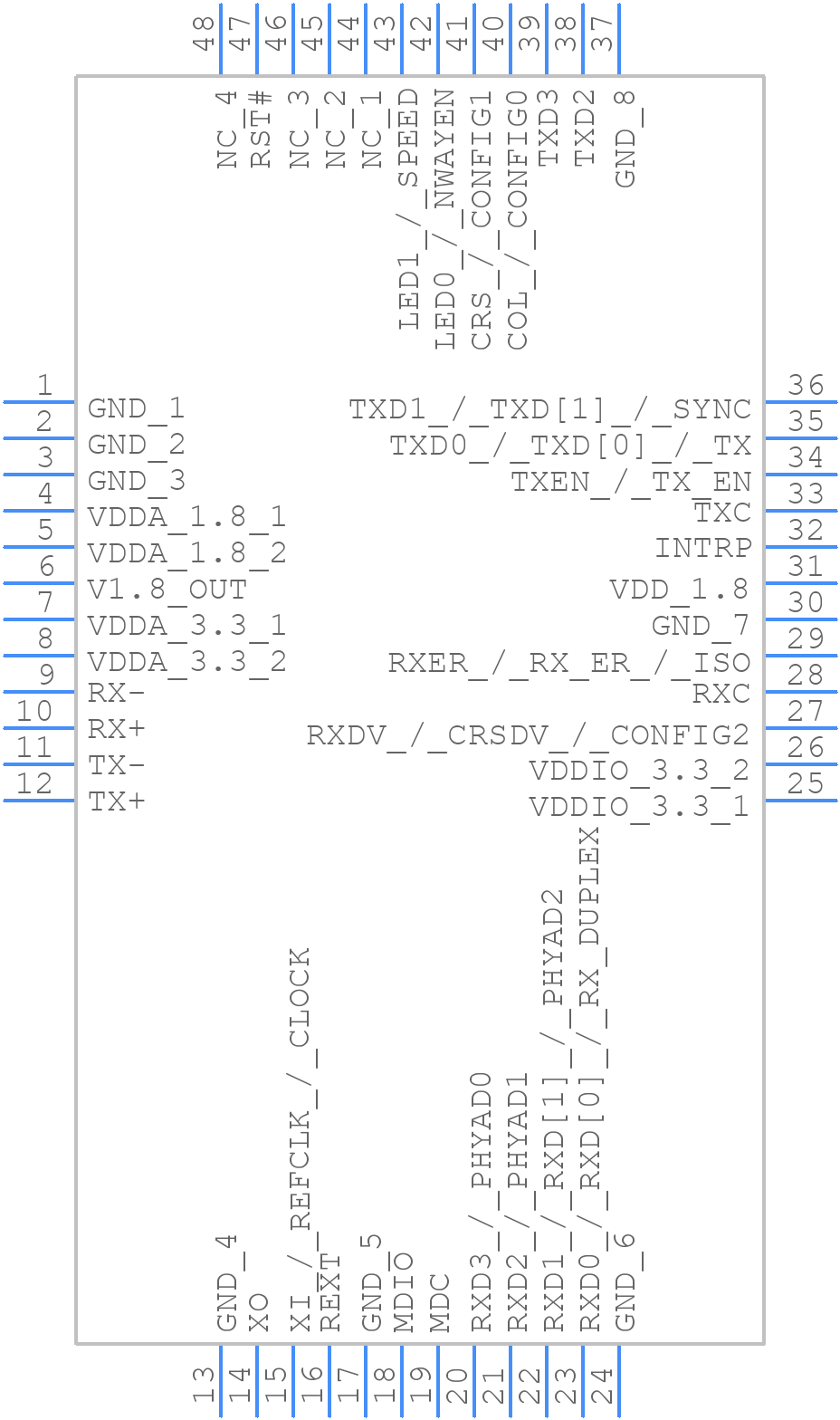

Use the download button to access the KSZ8041TLI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80,
or try a keyword search, such as Network Interfaces
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
