KSZ8051MNL - Microchip

Description: Micrel KSZ8051MNL, IEEE 802.3 Physical Layer Transceiver, 3.3 V, 32-Pin QFN

Download KSZ8051MNL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

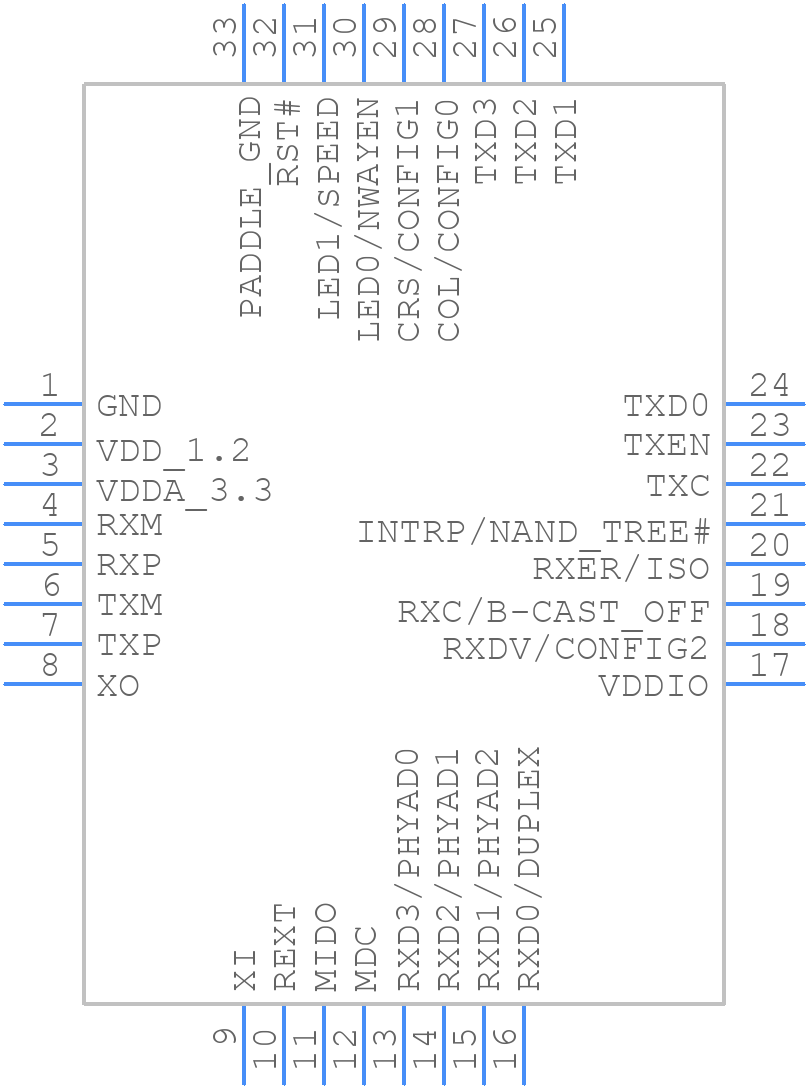

Symbol
KSZ8051MNL - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8051MNL - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Pin (5mm x 5mm) QFN
click to zoom
3D Models
KSZ8051MNL - Microchip - 3D model - Quad Flat No-Lead - 32-Pin (5mm x 5mm) QFN
click to zoom

KSZ8051MNL Details

  • Manufacturer Part Number:

    KSZ8051MNL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN, LCC32,.2SQ,20

  • Pin Count:

    32

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

KSZ8051MNL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8051MNL involves placing the device near the RJ-45 connector, using a solid ground plane, and keeping the analog and digital signal traces separate to minimize noise and EMI.
  • The KSZ8051MNL can be configured for half-duplex or full-duplex operation by setting the appropriate registers. For half-duplex, set the HDX pin high and the FDX pin low. For full-duplex, set the HDX pin low and the FDX pin high.
  • The KSZ8051MNL supports cable lengths up to 100 meters, as specified in the IEEE 802.3u standard.
  • The KSZ8051MNL has a built-in power-down mode that can be enabled by setting the PD pin high. Additionally, the device can be powered down by setting the EN pin low.
  • The KSZ8051MNL has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a thermal pad and heat sink, and the ambient temperature should be kept below 70°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8051MNL Overview

Use the download button to access the KSZ8051MNL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
