KSZ8061MNGW - Microchip

Description: PHY 10Mbps/100Mbps 3.135V to 3.465V Automotive 48-Pin QFN EP Tray

Download KSZ8061MNGW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

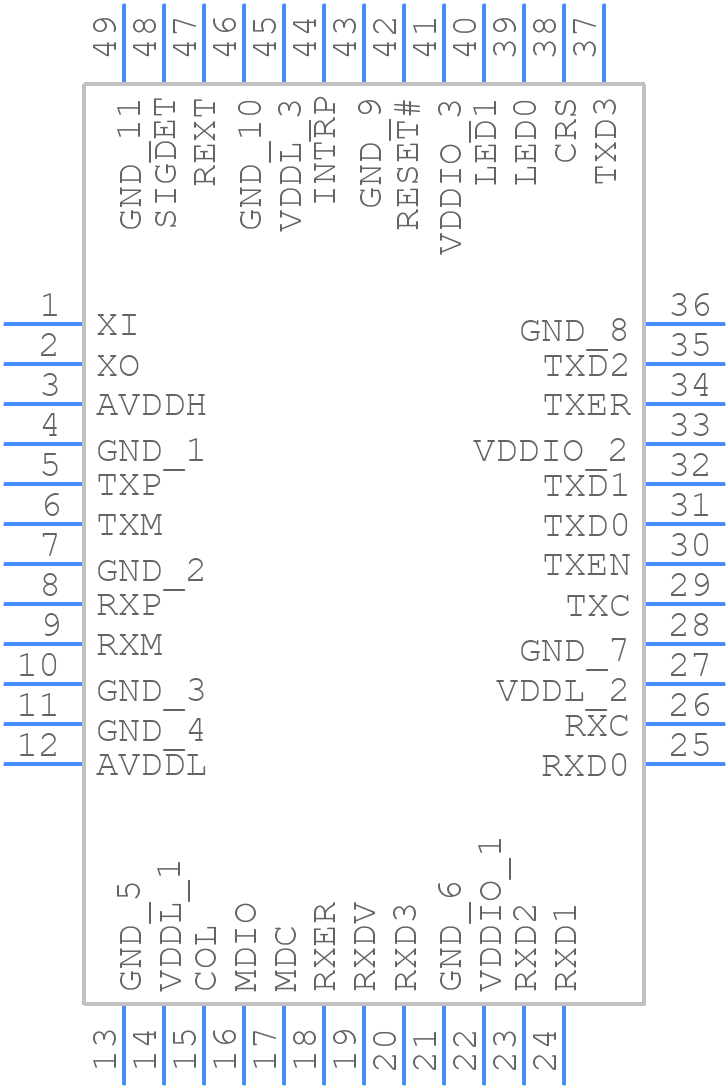

KSZ8061MNGW - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8061MNGW - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-LEAD QFN 7 MM X 7 MM PACKAGE
click to zoom
3D Models
KSZ8061MNGW - Microchip - 3D model - Quad Flat No-Lead - 48-LEAD QFN 7 MM X 7 MM PACKAGE
click to zoom

KSZ8061MNGW Details

  • Manufacturer Part Number:

    KSZ8061MNGW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8061MNGW Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8061MNGW is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • The KSZ8061MNGW can be configured for half-duplex or full-duplex mode by setting the appropriate registers through the SPI interface. Refer to the datasheet for the specific register settings.
  • The maximum cable length supported by the KSZ8061MNGW is 100 meters, assuming a Category 5e or higher cable.
  • To troubleshoot issues with the KSZ8061MNGW, check the power supply, clock signal, and reset signal. Also, verify that the device is properly configured and that the firmware is up-to-date.
  • The KSZ8061MNGW is designed to support standard Ethernet protocols (IEEE 802.3). Using a non-standard protocol may require custom firmware development and is not recommended.
