KSZ8061RNBW-TR - Microchip

Description: Ethernet ICs 10/100 Base-TX/FX Quiet-Wire x-ceiver

Download KSZ8061RNBW-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

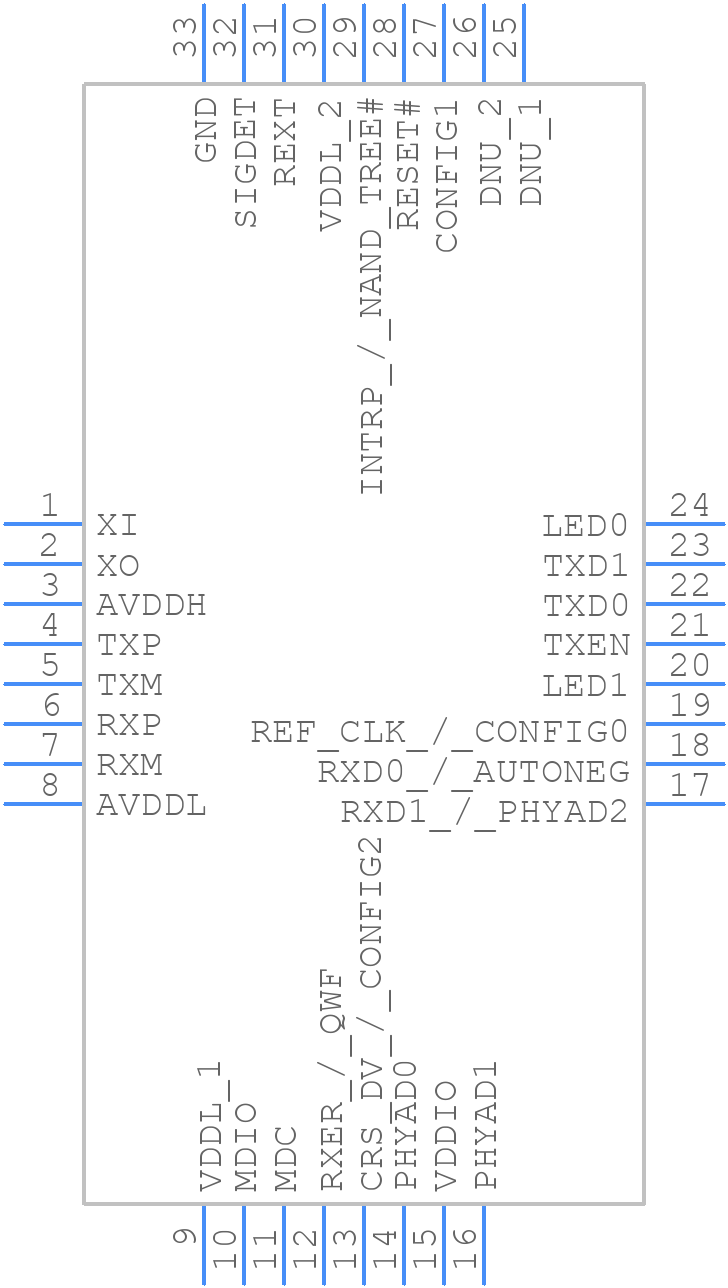

KSZ8061RNBW-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8061RNBW-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 LEAD QFN 5X5mm
click to zoom
3D Models
KSZ8061RNBW-TR - Microchip - 3D model - Quad Flat No-Lead - 32 LEAD QFN 5X5mm
click to zoom

KSZ8061RNBW-TR Details

  • Manufacturer Part Number:

    KSZ8061RNBW-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

KSZ8061RNBW-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8061RNBW-TR can be found in the Microchip application note AN-1041, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8061RNBW-TR can be configured for different network topologies using the Microchip LANCheck configuration tool, which provides a graphical user interface for setting up the device's registers and configuring the network topology.
  • The maximum cable length supported by the KSZ8061RNBW-TR is 100 meters, as per the IEEE 802.3u standard for Fast Ethernet over twisted-pair cables.
  • Microchip provides a troubleshooting guide for the KSZ8061RNBW-TR, which covers common issues and their solutions, as well as a list of FAQs and application notes that can help diagnose and resolve problems.
  • Yes, the KSZ8061RNBW-TR is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.
