KSZ8081MNXCA-TR - Microchip

Description: Ethernet ICs 10/100 BASE-TX Physical Layer Transceiver

Download KSZ8081MNXCA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

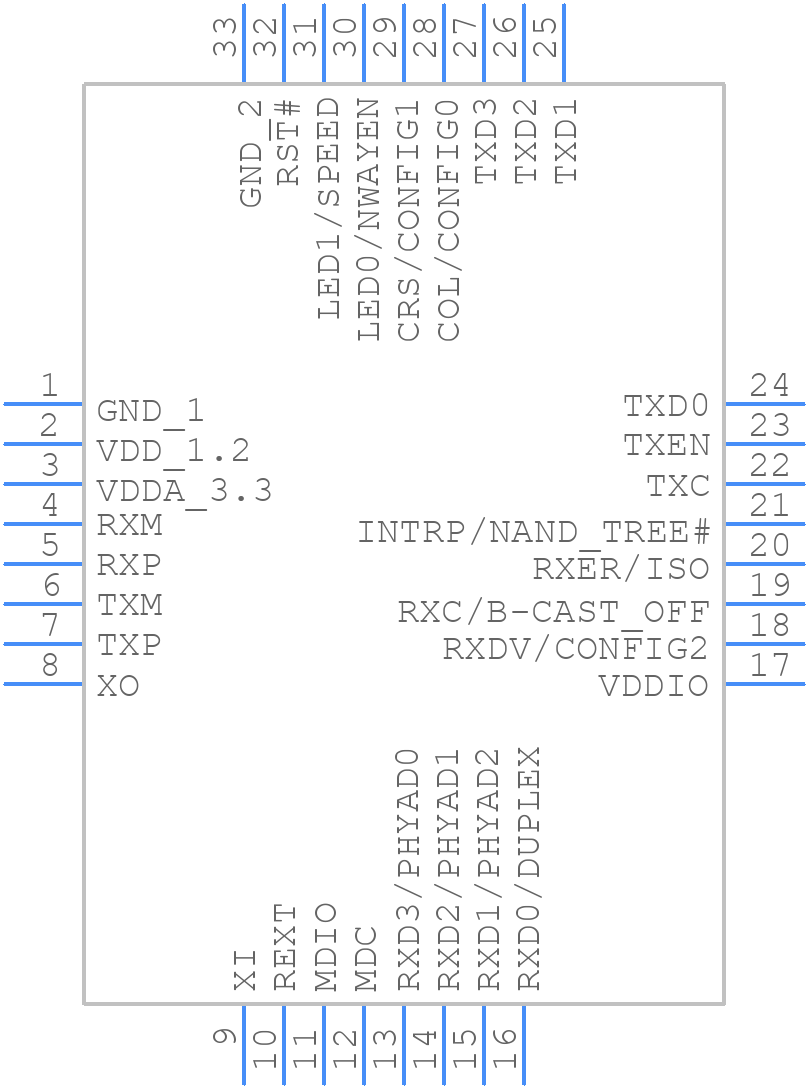

KSZ8081MNXCA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8081MNXCA-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Pin (5mm x 5mm) QFN
click to zoom
3D Models
KSZ8081MNXCA-TR - Microchip - 3D model - Quad Flat No-Lead - 32-Pin (5mm x 5mm) QFN
click to zoom

KSZ8081MNXCA-TR Details

  • Manufacturer Part Number:

    KSZ8081MNXCA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

KSZ8081MNXCA-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8081MNXCA-TR can be found in the Microchip application note AN-2059, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8081MNXCA-TR supports auto-negotiation, which can be enabled by setting the ANENABLE bit in the BMCR register. Additionally, the device must be configured to use the IEEE 802.3u standard for auto-negotiation to work properly.
  • The KSZ8081MNXCA-TR supports cable lengths up to 100 meters, as specified in the IEEE 802.3u standard. However, the actual cable length may vary depending on the specific application and environmental conditions.
  • To troubleshoot issues with the KSZ8081MNXCA-TR, start by checking the device's status registers to identify any error conditions. Then, use a logic analyzer or oscilloscope to verify the signal integrity and timing of the transmit and receive signals. Additionally, consult the Microchip documentation and application notes for troubleshooting guidelines and FAQs.
  • While the KSZ8081MNXCA-TR is primarily designed for Ethernet applications, it can be used in other applications that require a high-speed, low-power transceiver. However, the device's performance and functionality may vary depending on the specific application and requirements.
