KSZ8081RNACA-TR - Microchip

Description: Ethernet Transceiver,PHY,RMII,QFN24

Download KSZ8081RNACA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

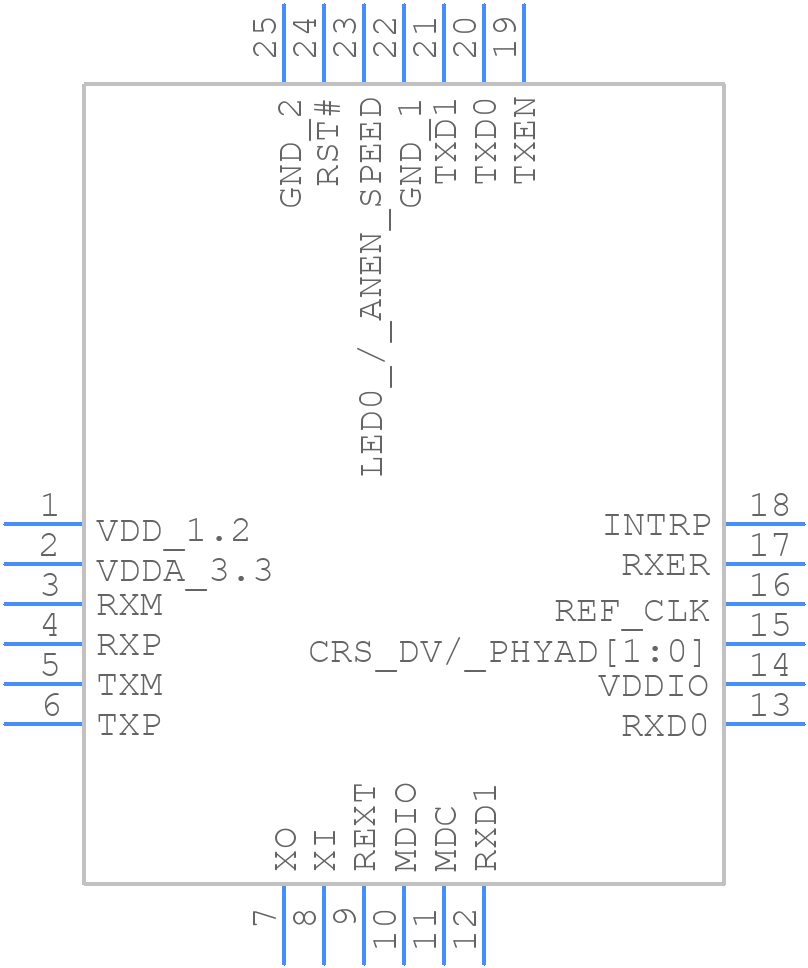

KSZ8081RNACA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8081RNACA-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - KSZ8081RNACA-TR
click to zoom

KSZ8081RNACA-TR Details

  • Manufacturer Part Number:

    KSZ8081RNACA-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN, LCC24,.16SQ,20

  • Pin Count:

    24

  • Manufacturer Package Code:

    VQFN-24

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    3 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

KSZ8081RNACA-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8081RNACA-TR can be found in the Microchip application note AN-2054, which provides guidelines for PCB design, layout, and thermal considerations.
  • The KSZ8081RNACA-TR can be configured for specific network topologies using the Microchip LANCheck online tool or by consulting the device's datasheet and application notes. The tool provides a graphical interface to configure the device for various network topologies, including star, bus, and ring configurations.
  • The KSZ8081RNACA-TR has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device's junction temperature below 125°C. Thermal management considerations include providing adequate heat sinking, using thermal vias, and ensuring good airflow around the device.
  • Troubleshooting issues with the KSZ8081RNACA-TR can be done using a combination of tools and techniques, including using a logic analyzer to capture and analyze the device's signals, checking the device's configuration and register settings, and consulting the device's datasheet and application notes.
  • The KSZ8081RNACA-TR is designed to meet the electromagnetic interference (EMI) and electromagnetic compatibility (EMC) requirements of various regulatory bodies, including the FCC and CE. To ensure compliance, it is recommended to follow proper PCB design and layout practices, use shielding and filtering as needed, and consult the device's datasheet and application notes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8081RNACA-TR Overview

Use the download button to access the KSZ8081RNACA-TR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ80, or try a keyword search, such as Network Interfaces
