KSZ8081RNDCA-TR - Microchip

Description: Ethernet ICs 10/100 BASE-TX Physical Layer Transceiver

Download KSZ8081RNDCA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

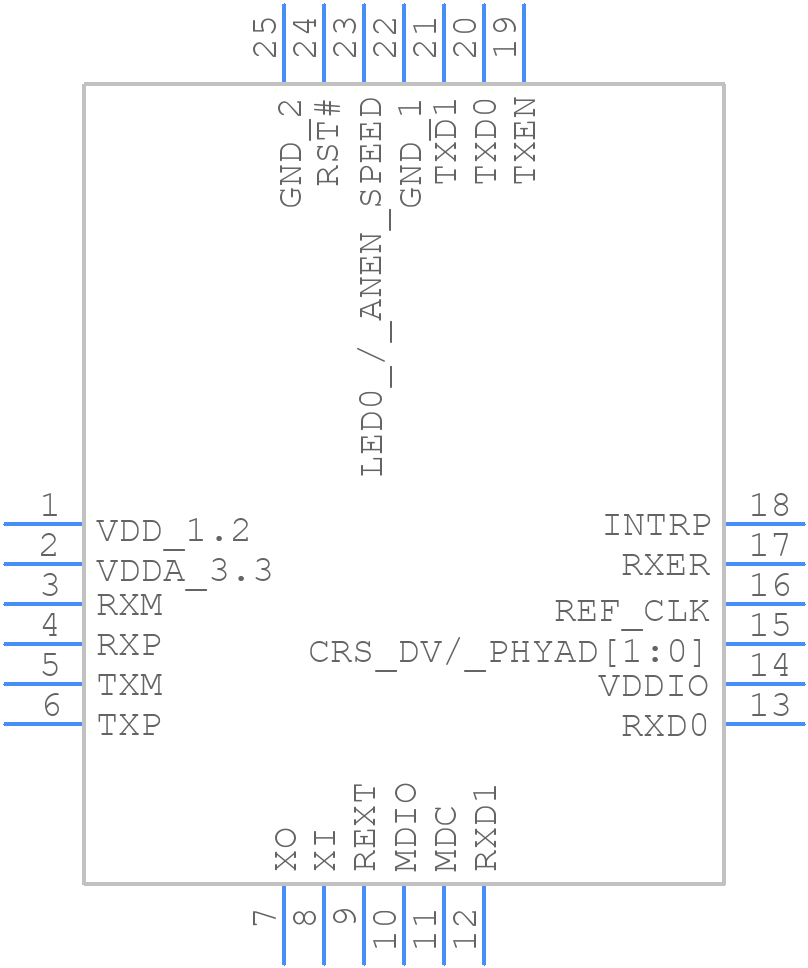

KSZ8081RNDCA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8081RNDCA-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - KSZ8081RNAIA-TR-1
click to zoom
3D Models
KSZ8081RNDCA-TR - Microchip - 3D model - Quad Flat No-Lead - KSZ8081RNAIA-TR-1
click to zoom

KSZ8081RNDCA-TR Details

  • Manufacturer Part Number:

    KSZ8081RNDCA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    VQFN-24

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    2 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

KSZ8081RNDCA-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8081RNDCA-TR can be found in the Microchip application note AN-2059, which provides guidelines for PCB design, layout, and thermal considerations.
  • The KSZ8081RNDCA-TR can be configured for specific network topologies using the Microchip LANCheck online tool or by consulting the device's datasheet and application notes. The tool provides a graphical interface to configure the device for various network topologies, including star, bus, and ring configurations.
  • The KSZ8081RNDCA-TR has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device's junction temperature below 125°C. Thermal management considerations include providing adequate heat sinking, using thermal vias, and ensuring good airflow around the device.
  • Troubleshooting issues with the KSZ8081RNDCA-TR can be done using a combination of tools and techniques, including using a logic analyzer to capture and analyze the device's signals, checking the device's configuration and register settings, and consulting the device's datasheet and application notes.
  • The KSZ8081RNDCA-TR is designed to meet the electromagnetic interference (EMI) and electromagnetic compatibility (EMC) requirements of various regulatory bodies, including the FCC and CE. To ensure compliance, it is recommended to follow proper PCB design and layout practices, use shielding and filtering as needed, and consult the device's datasheet and application notes.
