KSZ8721BL-TR - Microchip

Description: MICROCHIP - KSZ8721BL-TR - Ethernet Controller, 100 Mbps, IEEE 802.3, IEEE 802.3u, 2.5 V, LQFP, 48 Pins

Download KSZ8721BL-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

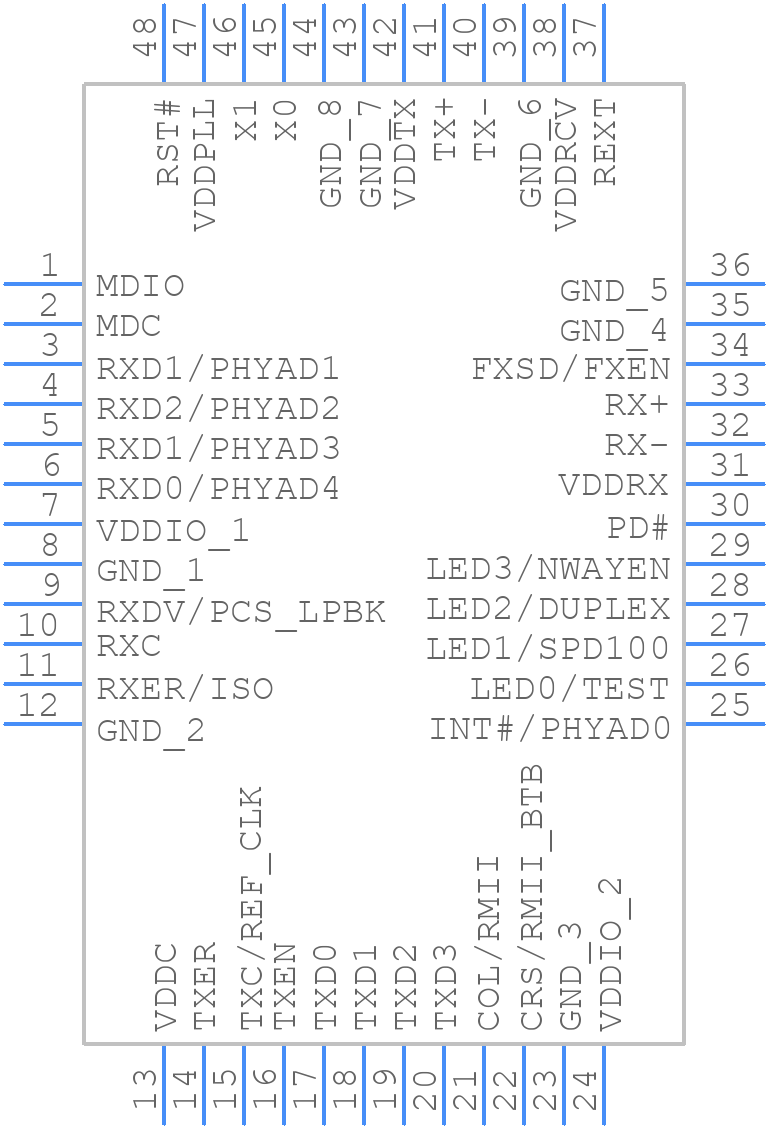

KSZ8721BL-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8721BL-TR - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 LEAD LQFP_1c d
click to zoom
3D Models
KSZ8721BL-TR - Microchip - 3D model - Quad Flat Packages - 48 LEAD LQFP_1c d
click to zoom

KSZ8721BL-TR Details

  • Manufacturer Part Number:

    KSZ8721BL-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8721BL-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8721BL-TR is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • To ensure reliable operation of the KSZ8721BL-TR in high-temperature environments, it is recommended to use a heat sink, ensure good airflow, and follow the thermal design guidelines provided in the datasheet.
  • The maximum cable length supported by the KSZ8721BL-TR is 100 meters, but this can be extended up to 200 meters using repeaters or switches.
  • To troubleshoot issues with the KSZ8721BL-TR, check the power supply, clock signal, and data transmission lines for any errors or noise, and use oscilloscopes or logic analyzers to debug the issue.
  • Yes, the KSZ8721BL-TR can be used in a redundant or backup configuration to provide fault tolerance and ensure high availability in critical applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8721BL-TR Overview

Use the download button to access the KSZ8721BL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ87, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
