The recommended PCB layout for the KSZ8721BT involves placing the device near the RJ-45 connector, using a solid ground plane, and keeping the analog and digital signal traces separate. A 4-layer PCB is recommended, with the top layer for signals, the second layer for the power plane, the third layer for the ground plane, and the bottom layer for signals.
To ensure reliable operation of the KSZ8721BT in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to 85°C.
The KSZ8721BT is designed to meet the EMI and RFI requirements of the IEEE 802.3 standard. To minimize EMI and RFI, it is recommended to use a shielded RJ-45 connector, keep the PCB layout compact, and use a common-mode choke on the magnetics. Additionally, the device should be placed in a metal enclosure to reduce radiation.
To troubleshoot issues with the KSZ8721BT, it is recommended to follow a systematic approach, starting with checking the power supply, clock, and reset signals. Then, verify the device configuration and register settings. Use a logic analyzer or oscilloscope to capture and analyze the signal waveforms. Finally, consult the datasheet and application notes for troubleshooting guidelines and FAQs.
The KSZ8721BT requires a specific power sequencing to ensure proper operation. The recommended power-up sequence is: VCC, then VCCIO, then the clock signal. The power-down sequence should be reversed. It is also recommended to use a power-on reset circuit to ensure a clean reset signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KSZ8721BT Overview

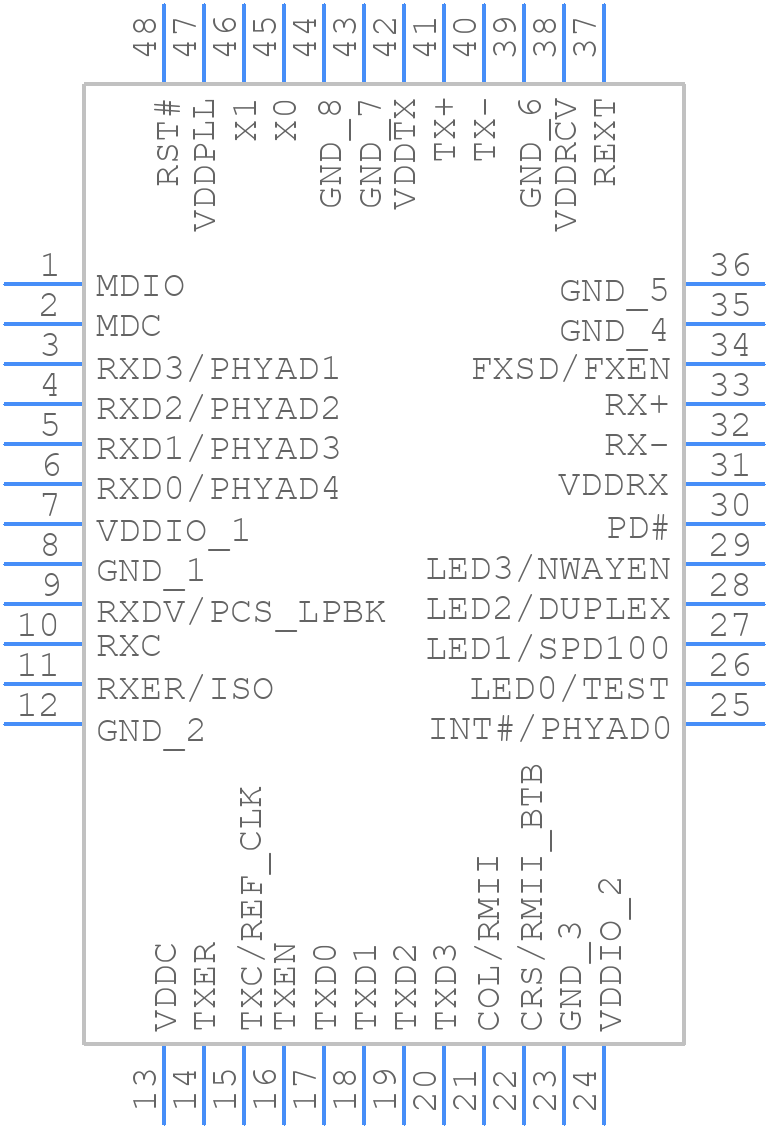

Use the download button to access the KSZ8721BT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ87,
or try a keyword search, such as Network Interfaces
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
