KSZ8851-16MLLI - Microchip

Description: Ethernet ICs 10/100 Controller w/ Generic 8/16-bit Bus I/F

Download KSZ8851-16MLLI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

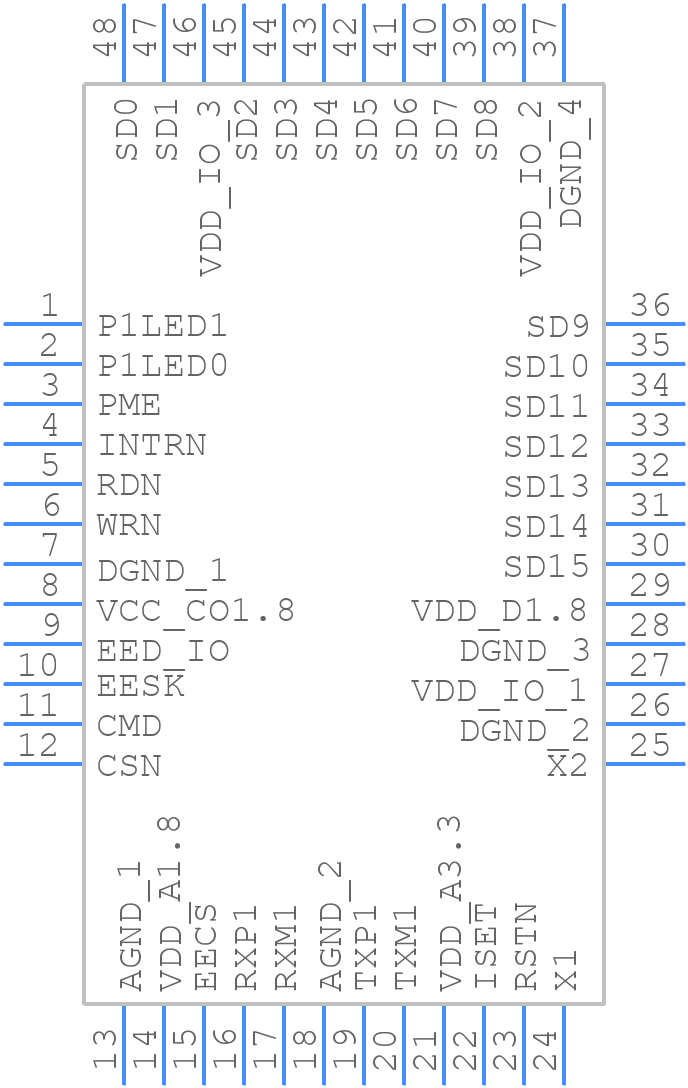

KSZ8851-16MLLI - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8851-16MLLI - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Pin LQFP (7mm x 7mm)
click to zoom
3D Models
KSZ8851-16MLLI - Microchip - 3D model - Quad Flat Packages - 48-Pin LQFP (7mm x 7mm)
click to zoom

KSZ8851-16MLLI Details

  • Manufacturer Part Number:

    KSZ8851-16MLLI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8851-16MLLI Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8851-16MLLI is a 4-layer board with a solid ground plane on the bottom layer, and a split power plane on the top layer. This helps to reduce EMI and improve signal integrity.
  • The KSZ8851-16MLLI can be configured for half-duplex or full-duplex mode through the MDIO interface. The device can be set to half-duplex mode by writing a specific value to the BMCR register, or to full-duplex mode by writing a different value to the same register.
  • The maximum cable length supported by the KSZ8851-16MLLI is 100 meters, which is the standard maximum length for Ethernet cables.
  • The KSZ8851-16MLLI has a built-in power management feature that can be controlled through the PMD register. The device can be set to a low-power mode or a sleep mode to reduce power consumption when not in use.
  • The maximum operating temperature range for the KSZ8851-16MLLI is -40°C to 85°C, making it suitable for use in a wide range of industrial and commercial applications.
