KSZ8851-16MLLU-TR - Microchip

Description: IC TXRX PHY 10/100 2PORT 48LQFP

Download KSZ8851-16MLLU-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

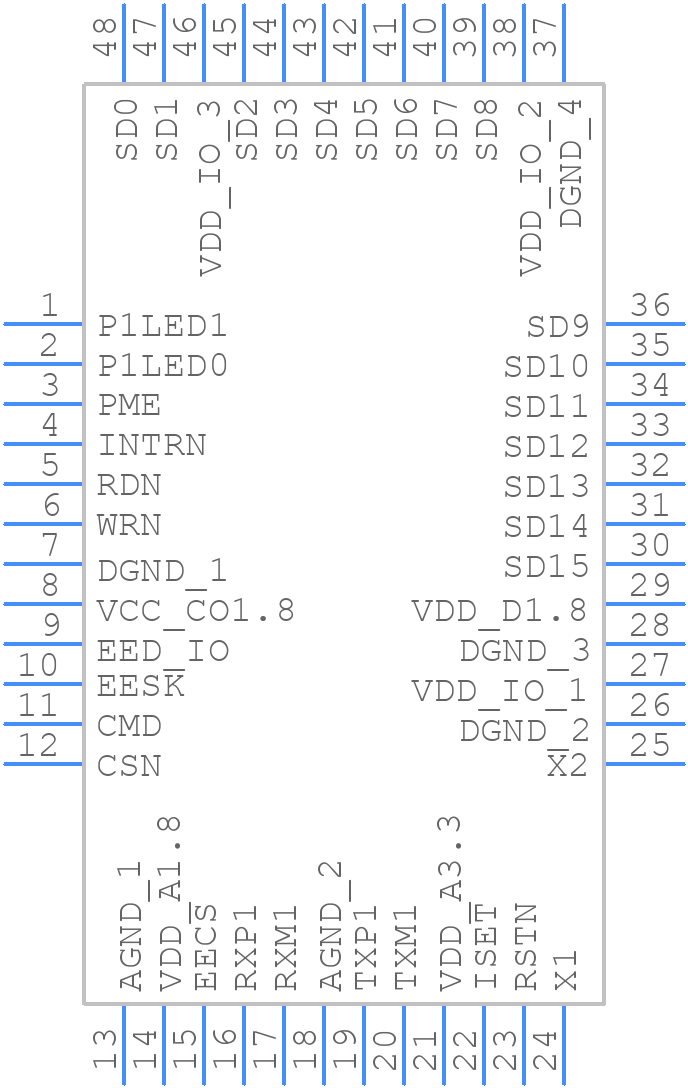

KSZ8851-16MLLU-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8851-16MLLU-TR - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - KSZ8851-16MLLU-TR
click to zoom
3D Models
KSZ8851-16MLLU-TR - Microchip - 3D model - Quad Flat Packages - KSZ8851-16MLLU-TR
click to zoom

KSZ8851-16MLLU-TR Details

  • Manufacturer Part Number:

    KSZ8851-16MLLU-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8851-16MLLU-TR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the KSZ8851-16MLLU-TR is -40°C to 85°C.
  • The KSZ8851-16MLLU-TR can be configured for specific network topologies such as star, bus, or tree using the device's register settings and pin configurations. Refer to the application notes and user guides provided by Microchip Technology Inc for more information.
  • The maximum cable length supported by the KSZ8851-16MLLU-TR is 100 meters for Category 5e or higher cables, assuming a single segment configuration.
  • Yes, the KSZ8851-16MLLU-TR can be used in a PoE application, but it requires an external PoE controller and power management circuitry to meet the IEEE 802.3af standard.
  • To troub(sort issues with the KSZ8851-16MLLU-TR, use a combination of tools such as network protocol analyizers, oscilloscopes, and logic analyizers to debug the issue. Also, refer to the device's datasheet and application notes for troubleshooting guidelines and FAQs.
