KSZ8851-16MQLI - Microchip

Description: Ethernet ICs 10/100 Controller w/ Generic 8/16-bit Bus I/F

Download KSZ8851-16MQLI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8851-16MQLI - Microchip - PCB symbol
click to zoom
PCB Footprints

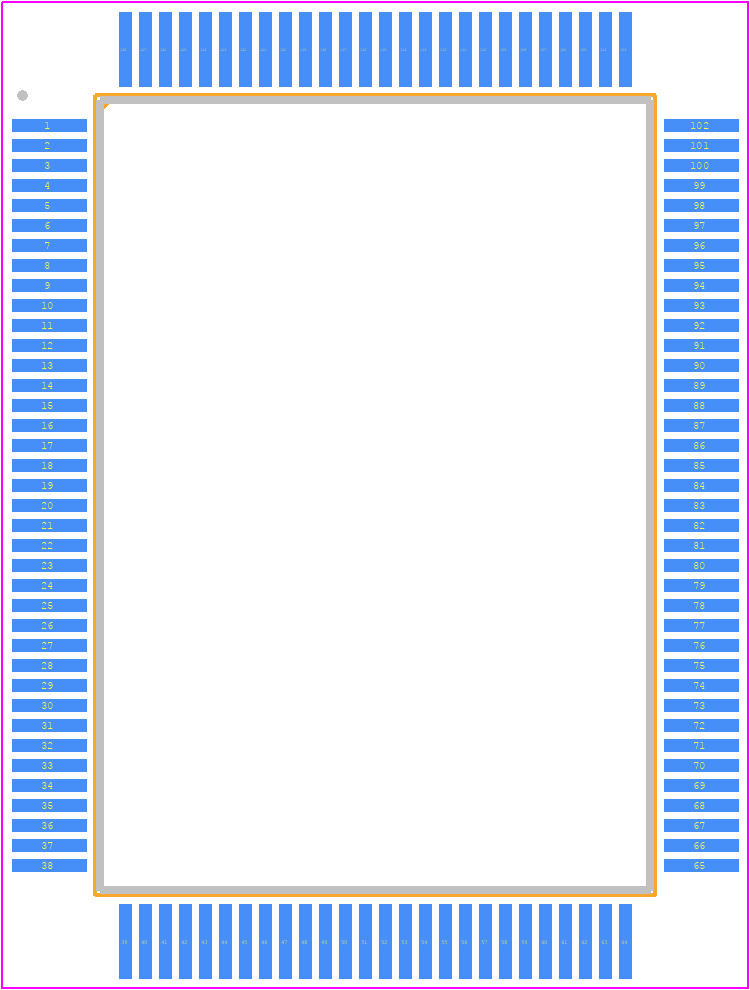

KSZ8851-16MQLI - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-LEAD PQFP 14 MM X 20 MM PACKAGE
click to zoom
3D Models
KSZ8851-16MQLI - Microchip - 3D model - Quad Flat Packages - 128-LEAD PQFP 14 MM X 20 MM PACKAGE
click to zoom

KSZ8851-16MQLI Details

  • Manufacturer Part Number:

    KSZ8851-16MQLI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    PQFP-128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

KSZ8851-16MQLI Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8851-16MQLI can be found in the Microchip application note AN2054, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8851-16MQLI supports VLAN tagging through its VLAN table. To configure VLAN tagging, you need to program the VLAN table using the SPI interface. The VLAN table consists of 16 entries, each containing a VLAN ID, priority, and port membership. You can refer to the KSZ8851-16MQLI datasheet and the Microchip application note AN2044 for more information on VLAN configuration.
  • The KSZ8851-16MQLI supports cable lengths up to 100 meters for 10/100Mbps Ethernet and up to 80 meters for 1000Mbps Ethernet, assuming a high-quality Category 5e or higher cable is used. However, the actual cable length may vary depending on the specific application and environmental conditions.
  • The KSZ8851-16MQLI has a built-in power management feature that allows you to control power consumption. You can use the Power Down (PD) pin to put the device in a low-power state. Additionally, you can use the Wake-On-LAN (WOL) feature to wake up the device from a low-power state when a magic packet is received. Refer to the KSZ8851-16MQLI datasheet for more information on power management.
  • The KSZ8851-16MQLI has an operating temperature range of -40°C to +85°C. However, the device can be operated at temperatures up to +100°C for short periods of time during power-up or power-down sequences.
