KSZ8863MLL - Microchip

Description: Micrel KSZ8863MLL, 3-port Ethernet Switch, MII/RMII, 10 Mbit/s, 100 Mbit/s 1.8 V, 3.3 V, 48-Pin LQFP

Download KSZ8863MLL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

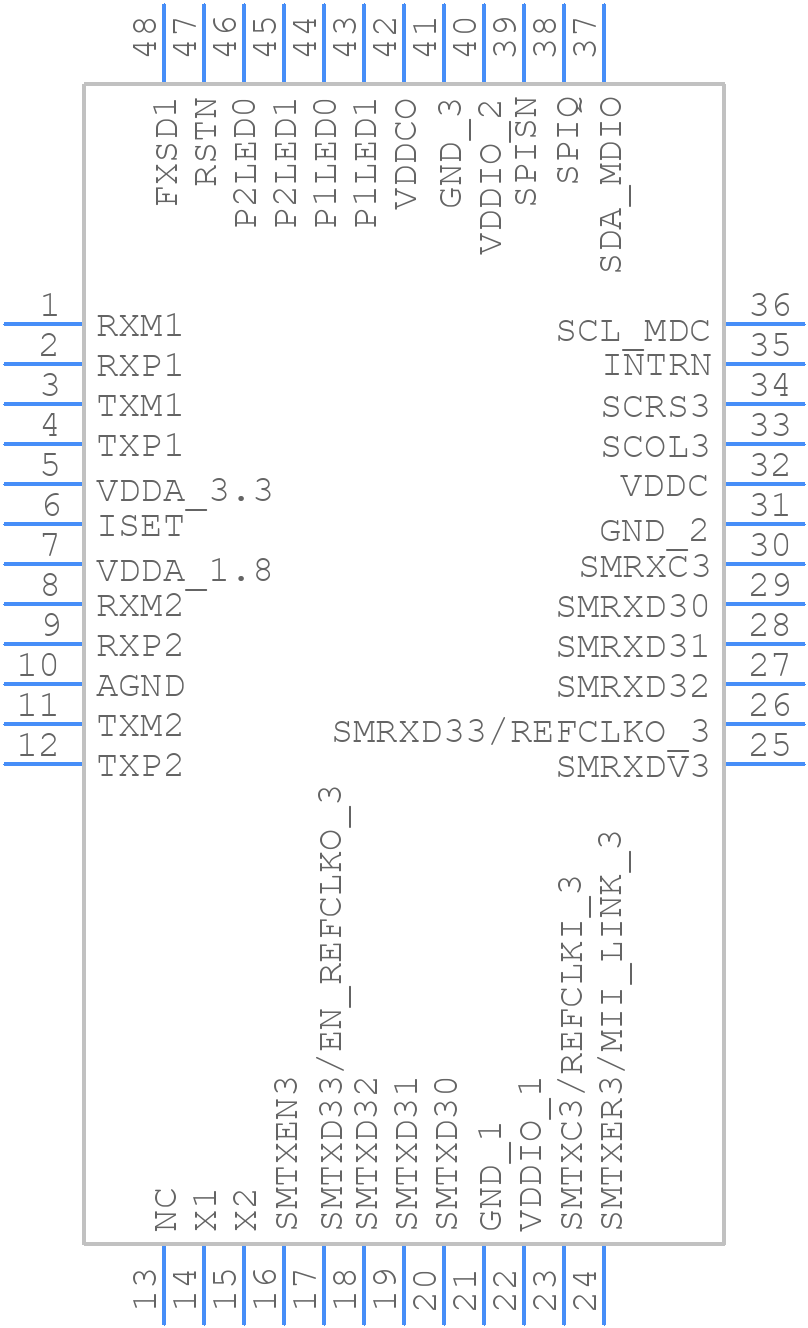

KSZ8863MLL - Microchip - PCB symbol
click to zoom
PCB Footprints
KSZ8863MLL - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 Lead LQFP 7x7
click to zoom
3D Models
KSZ8863MLL - Microchip - 3D model - Quad Flat Packages - 48 Lead LQFP 7x7
click to zoom

KSZ8863MLL Details

  • Manufacturer Part Number:

    KSZ8863MLL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

KSZ8863MLL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8863MLL is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • The KSZ8863MLL can be configured for half-duplex or full-duplex operation by setting the appropriate registers. For half-duplex operation, set the TXEN and RXEN pins to the same value. For full-duplex operation, set TXEN high and RXEN low.
  • The maximum cable length supported by the KSZ8863MLL is 100 meters, assuming a Category 5e or higher cable.
  • To troubleshoot issues with the KSZ8863MLL, check the device's status registers, verify that the clock signal is stable, and ensure that the power supply is within the recommended range. Also, check for any signal integrity issues on the PCB.
  • The KSZ8863MLL is designed to support standard Ethernet protocols (10/100Mbps). While it may be possible to use it with non-standard protocols, it is not recommended and may require significant customization and testing.
