KSZ8893MQL - Microchip

Description: MICROCHIP - KSZ8893MQL - Ethernet Controller, 100 Mbps, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, 3.1 V, 3.5 V, PQFP, 128 Pins

Download KSZ8893MQL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8893MQL - Microchip - PCB symbol
click to zoom
PCB Footprints

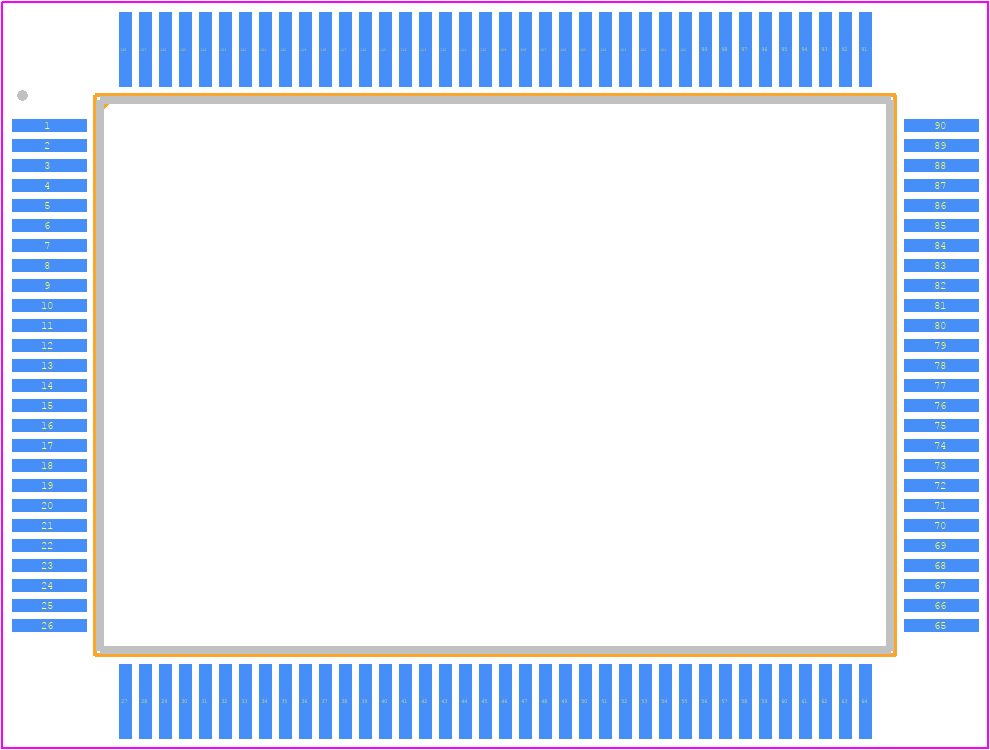

KSZ8893MQL - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - KSZ8893MQL
click to zoom
3D Models
KSZ8893MQL - Microchip - 3D model - Quad Flat Packages - KSZ8893MQL
click to zoom

KSZ8893MQL Details

  • Manufacturer Part Number:

    KSZ8893MQL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LEAD FREE, PLASTIC, QFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    PQFP-128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Number of Transceivers:

    2

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.68X.91,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LAN SWITCHING CIRCUIT

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

KSZ8893MQL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8893MQL is to follow a 4-layer stack-up with a solid ground plane on the bottom layer, and to keep the analog and digital signals separate to minimize noise and crosstalk.
  • The KSZ8893MQL can be configured for a specific network topology using the SPI interface to program the device's registers. The configuration depends on the specific network topology and the desired features, such as VLAN support or Quality of Service (QoS).
  • The maximum cable length supported by the KSZ8893MQL is 100 meters for Category 5e or higher cabling, assuming a proper installation and termination.
  • To troubleshoot issues with the KSZ8893MQL, check the device's status registers, verify the power supply and clock signals, and use a logic analyzer or oscilloscope to debug the digital signals. Also, ensure that the device is properly configured and that the firmware is up-to-date.
  • Yes, the KSZ8893MQL can be used in a redundant or backup network configuration, such as a ring or mesh topology, to provide fault tolerance and ensure network reliability.
