KSZ8895MLXI-TR - Microchip

Description: Ethernet ICs 5-Port 10/100 Manage d Switch w/ MII, RM

Download KSZ8895MLXI-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8895MLXI-TR - Microchip - PCB symbol
click to zoom
PCB Footprints

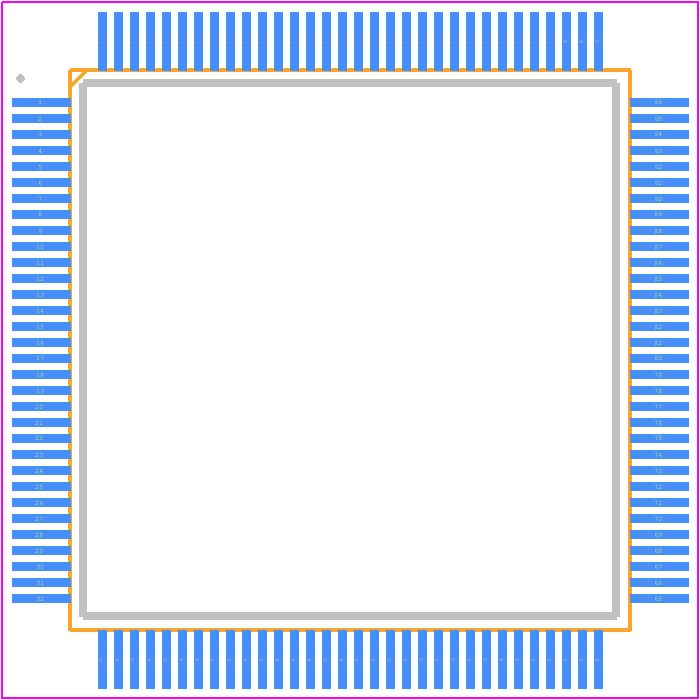

KSZ8895MLXI-TR - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - KSZ8895MLXI-TR
click to zoom
3D Models
KSZ8895MLXI-TR - Microchip - 3D model - Quad Flat Packages - KSZ8895MLXI-TR
click to zoom

KSZ8895MLXI-TR Details

  • Manufacturer Part Number:

    KSZ8895MLXI-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFQFP, QFP128,.63SQ,16

  • Pin Count:

    128

  • Manufacturer Package Code:

    LQFP-128

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    20

  • JESD-30 Code:

    S-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP128,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

KSZ8895MLXI-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8895MLXI-TR can be found in the Microchip application note AN2054, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8895MLXI-TR supports VLAN tagging through its built-in VLAN table. To configure VLAN tagging, you need to program the VLAN table using the device's register interface. Refer to the datasheet section 5.3.4 for details on VLAN table programming.
  • The KSZ8895MLXI-TR supports cable lengths up to 100 meters for 1000BASE-T and 100 meters for 100BASE-TX. However, the actual cable length may vary depending on the specific application and cable quality.
  • Yes, the KSZ8895MLXI-TR supports redundant or failover configurations through its built-in redundant port feature. This allows you to connect multiple switches or networks to ensure high availability and fault tolerance.
  • To troubleshoot issues with the KSZ8895MLXI-TR, start by checking the device's status registers and error counters. You can also use diagnostic tools such as packet sniffers or network analyzers to identify the source of the issue. Refer to the datasheet and application notes for more information on troubleshooting and debugging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8895MLXI-TR Overview

Use the download button to access the KSZ8895MLXI-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ88, or try a keyword search, such as Network Interfaces
