KSZ8895MQXCA - Microchip

Description: Ethernet ICs 5-Port 10/100 Ether Switch with MII/RMII

Download KSZ8895MQXCA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8895MQXCA - Microchip - PCB symbol
click to zoom
PCB Footprints

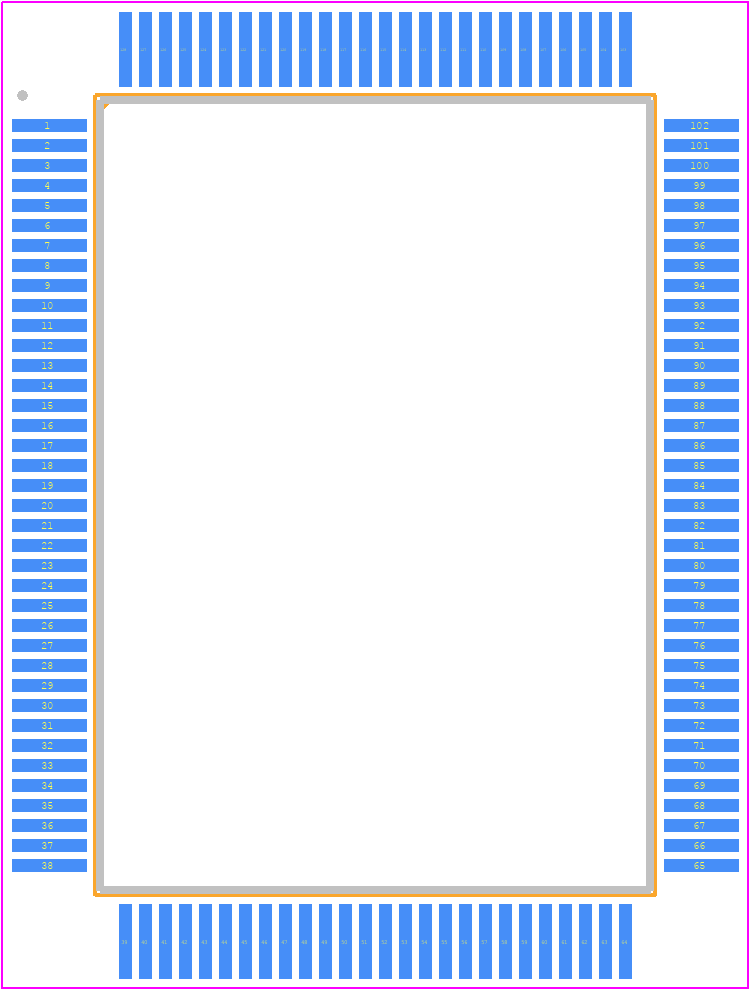

KSZ8895MQXCA - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-Pin PQFP_1
click to zoom
3D Models
KSZ8895MQXCA - Microchip - 3D model - Quad Flat Packages - 128-Pin PQFP_1
click to zoom

KSZ8895MQXCA Details

  • Manufacturer Part Number:

    KSZ8895MQXCA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, QFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    PQFP-128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Number of Transceivers:

    5

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.68X.91,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

KSZ8895MQXCA Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8895MQXCA can be found in the Microchip application note AN2054, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The KSZ8895MQXCA supports VLAN tagging through its VLAN table. To configure VLAN tagging, you need to program the VLAN table using the SPI interface. The VLAN table consists of 16 entries, each containing a VLAN ID, priority, and port membership. You can refer to the KSZ8895MQXCA datasheet and the Microchip application note AN2055 for more information on VLAN configuration.
  • The KSZ8895MQXCA supports cable lengths up to 100 meters for 1000BASE-T and 100BASE-TX, and up to 200 meters for 10BASE-T. However, the actual cable length supported may vary depending on the cable quality, noise environment, and other factors.
  • The KSZ8895MQXCA has a built-in power management feature that allows you to control the power consumption of the device. You can use the Power Down (PD) pin to put the device in a low-power state. Additionally, you can use the Wake-On-LAN (WOL) feature to wake up the device from a low-power state when a magic packet is received. Refer to the KSZ8895MQXCA datasheet for more information on power management.
  • The KSZ8895MQXCA supports up to 4096 MAC addresses, which can be stored in the device's internal memory. This allows the device to support a large number of devices on a network.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8895MQXCA Overview

Use the download button to access the KSZ8895MQXCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ88, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
