KSZ8895MQXI - Microchip

Description: Ethernet Switch 10/100 Base-T/TX I²C, SPI Interface 128-PQFP (14x20)

Download KSZ8895MQXI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
KSZ8895MQXI - Microchip - PCB symbol
click to zoom
PCB Footprints

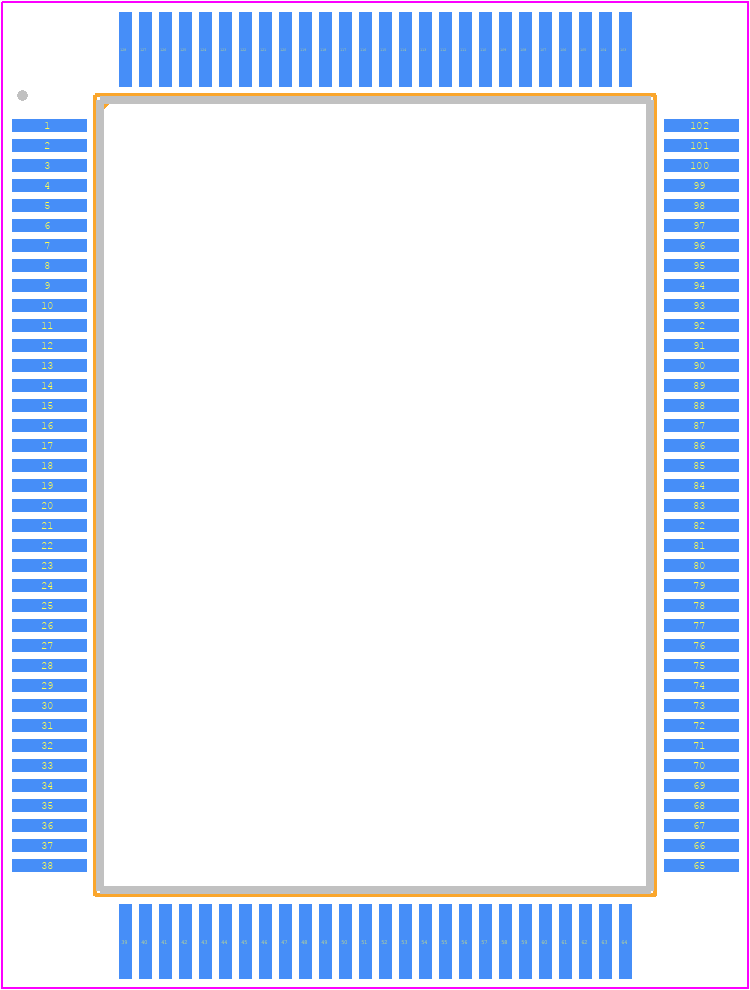

KSZ8895MQXI - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - PQFP14x20-128LD-PL-1
click to zoom
3D Models
KSZ8895MQXI - Microchip - 3D model - Quad Flat Packages - PQFP14x20-128LD-PL-1
click to zoom

KSZ8895MQXI Details

  • Manufacturer Part Number:

    KSZ8895MQXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    128

  • Manufacturer Package Code:

    PQFP-128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2016-08-12

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    20

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.68X.91,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    3.4 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

KSZ8895MQXI Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the KSZ8895MQXI is to follow the guidelines provided in the Microchip application note AN2054, which includes recommendations for component placement, routing, and thermal management.
  • To configure the KSZ8895MQXI for VLAN tagging, you need to set the VLAN mode using the VLAN_MODE register (0x10) and configure the VLAN ID using the VLAN_ID register (0x11). Refer to the datasheet for specific register settings and bit definitions.
  • The KSZ8895MQXI supports cable lengths up to 100 meters for 1000BASE-T and 100 meters for 100BASE-TX, assuming Category 5e or higher cabling.
  • To troubleshoot issues with the KSZ8895MQXI, start by checking the device's status registers (e.g., 0x00-0x03) to identify any error conditions. Then, use a logic analyzer or oscilloscope to verify signal integrity and timing. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • Yes, the KSZ8895MQXI can be used in a redundant or failover configuration by connecting multiple devices in parallel and using a redundancy protocol such as Spanning Tree Protocol (STP) or Link Aggregation Control Protocol (LACP).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

KSZ8895MQXI Overview

Use the download button to access the KSZ8895MQXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ88, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
