The recommended PCB layout for the KSZ8993 involves placing the device near the RJ-45 connector, using a solid ground plane, and keeping the analog and digital signal traces separate. A 4-layer PCB is recommended, with the top layer for signals, the second layer for the power plane, the third layer for the ground plane, and the bottom layer for signals.
The KSZ8993 can be configured for a specific network topology using the SPI interface. The device can be configured for different network topologies such as star, bus, or tree topologies by setting the appropriate registers. The Microchip application note AN2044 provides more information on configuring the KSZ8993 for different network topologies.
The KSZ8993 supports cable lengths up to 100 meters, which is the standard for Ethernet cables. However, the actual cable length supported may vary depending on the quality of the cable and the network environment.
To troubleshoot issues with the KSZ8993, check the device's status registers, such as the PHY status register and the MAC status register, to identify the source of the problem. Also, check the device's power supply, clock, and reset signals to ensure they are within the recommended specifications. Additionally, use a protocol analyzer to capture and analyze the network traffic.
Yes, the KSZ8993 is rated for industrial temperature range applications, with an operating temperature range of -40°C to 85°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to follow the recommended operating conditions and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
KSZ8993 Overview

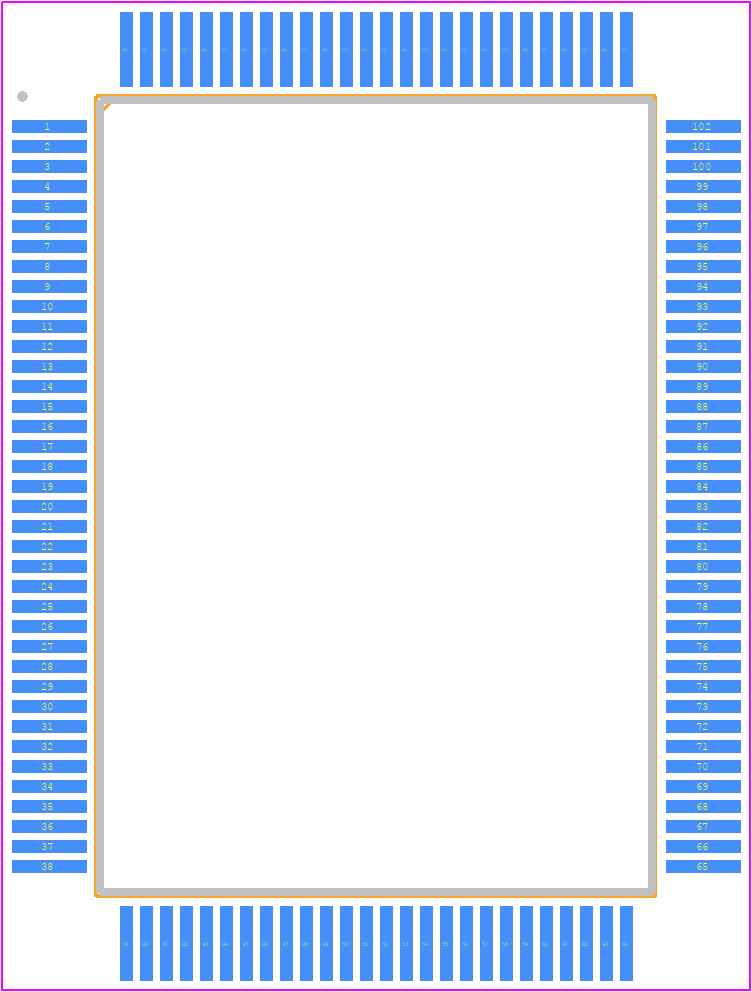

Use the download button to access the KSZ8993 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like KSZ89,
or try a keyword search, such as Network Interfaces
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
